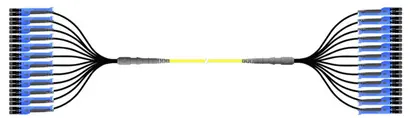

Optipack Harness, 24F, SM, 12x LC-XD UPC to 12x LC-XD UPC,

Optipack harnesses are generally used to connect high-density switches with LC serial transceiversinstalled.They are supplied in short lengths because theyare normally only used for "in-rack" connections, however longer assemblies can be requested for "middle ofrow" or "end of row" architectures.

General data

Side A / Left

Interface	connectorized
Type	Fiber Optic Connector
Connector family	LC
Gender	Plug
Housing colour FO Connector	Black
Clip type	Duplex
Clip family	XD
Boot colour	Black
Mating cycles with repeated cleaning	1000
Mechanical Interface Standard	IEC 61754-20, TIA 604-10-A (LC)
Boot Angle	S
Performance class H+S	S
Breakout type FO	equal length
Shortest breakout lenght FO	700 mm
Longest breakout length FO	700 mm
Breakout quantity	12 pcs

Side B / Right

Interface	connectorized
Type	Fiber Optic Connector
Connector family	LC
Gender	Plug
Housing colour FO Connector	Black
Clip type	Duplex
Clip type	XD
Clip family	XD
Clip family	Black
Boot colour	Black
Mating cycles with repeated cleaning	1000
Mechanical Interface Standard	IEC 61754-20, TIA 604-10-A (LC)
Boot Angle	S
Performance class H+S	S
Breakout type FO	equal length
Shortest breakout lenght FO	700 mm
Longest breakout length FO	700 mm
Breakout quantity	12 pcs

Fiber Optic Cable

Cable Description	Multifiber bundle cable
Fiber quantity	24
Fiber type	E9/125A2
CPR class	Dca-s1a,d0,a1
Strain relief	aramide yarn
Steel armoring	LSFH
Outer jacket diameter	3.6mm
Outer jacket material	LSFH
Tensile strength during installation	500 N
Tensile strength in service	200 N
Min. bending radius during installation	20 mm
Min. bending radius in service	20 mm
Crush resistance during installation	5000 N/dm
Crush resistance in service	1000 N/dm
Fire propagation standard	IEC 60332-1-2
