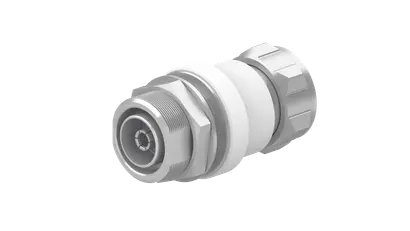

High voltage 1 kV DC-DC block

High voltage 1 kV DC-DC block

High voltage 1 kV DC-DC block

High voltage 1 kV DC-DC block

Product number 85007661

Identifier 9077.41.0036

Variation: -

General Information

Key features

Galvanic isolation of the RF signal path
Broadband operation up to 3000 MHz
Maintenance free
Protects against electromagnetic interference caused by traction return current
Provide ground potential separation

Specifications

Product configuration

Interface and material data

Electrical data

Impedance	50 Ω
Frequency frame	360 MHz to 3000 MHz
Return loss typical	≥ 20 dB
Insertion loss typical	≤ 0.1 dB
CW power frame	≤ 750 W
Peak power frame	≤ 10 kW
PIM 3rd order	-160 dBc
Galvanic isolation inner conductor	Yes
Galvanic isolation outer conductor	Yes
Blocking voltage center conductor	≤ 1000 V DC
Blocking voltage outer conductor	≤ 1000 V DC
Leakage current	≤ 5 µA
Test voltage	1200 V
Test leakage current max	10 µA

Electrical bands

Mechanical data

Environmental data
