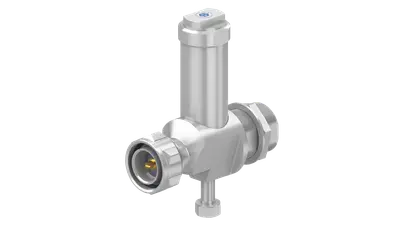

COAXIAL SURGE PROTECTOR DEVICE, High-power/low-IM GDT hybrid technology

Product number 84083837

Identifier 3409.41.0081

Variation -

General Information

Key features

Product configuration

Interface and material data

Electrical data

Impedance	50 Ω
Frequency frame	690 MHz to 2200 MHz
Return loss typical	≥ 22 dB
Insertion loss typical	≤ 0.15 dB
CW power frame	1500 W
PIM 3rd order	-150 dBc typ.
AISG frequency	2176 MHz
AISG return loss	20 dB
AISG insertion loss	0.1 dB
Residual pulse energy (typ.)	250 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Surge current handling capability	30 kA single, 20 kA multiple (test pulse 8/20 µs)

Electrical bands

Electrical remarks

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

MOUSER with lead time

DIGIKEY with lead time

Main path connectors	Port 1: unprotected, 7/16 plug (male) Port 2: protected, 7/16 jack (female)
Mounting and grounding	MH110 (bulkhead mounting), M8 (screw), brk (bracket)
Side of bulkhead	protected side
EMP can be install reversed	YES

Housing material / plating	Brass / SUCOPLATE (R) Plating
Center contact, material / plating	Port 1: Brass / Silver Plating Port 2: Bronze / Silver Plating

DC supply voltage	48 V
DC current	10 A
Gas tube	Yes DC, GDT included, replaceable, 9071.99.0548 (90 V)
Electrical remarks	Residual pulse voltage: 650 V typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs)

Weight	528 g
Mating cycles	500

Product code	3409.41.0081
Product description	High-power/low-IM GDT hybrid technology

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	IP67
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. A
Moisture resistance according	MIL-STD-202, Method 106
