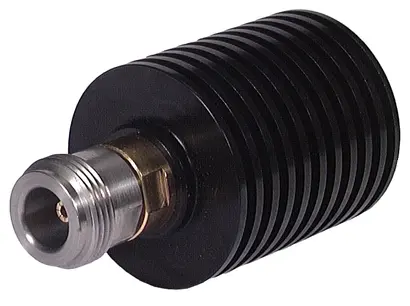

COAXIAL TERMINATION, 50 Ohm, N, jack (female)
-
Product code
6515.17.B
Interfaces
N / jack (female)
Various bandwidth
Impedance matched
Standard or precision types
Low and medium power
Material Data
Interface
N / jack (female)
Centre contact
Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer contact
Stainless steel
Body
Aluminium / Anodized
Insulator
PFA / PTFE
Electrical data
Impedance
50Ω
Operating frequency
0 GHz ... 12.4 GHz
VSWR
1.25
Return loss
19.1
dB
Electrical Data (frequency related)
Frequency range
VSWR max
Return loss
0 GHz to 1 GHz
1.05
1 GHz to 4 GHz
1.1
4 GHz to 10 GHz
1.2
10 GHz to 12.4 GHz
1.25
Electrical Data (power)
Average power
15 W at 25 °C ambient temperature. Linearly derated to W at 130 °C ambient temperature.
Peak power
1000 W, 5 µs pulse width, 0.05 % duty cycle
Mechanical data
Weight
0.087
kg
Environmental data
Operation temperature
-40 °C ... 130 °C
Material compliance ROHS
Directive
RoHS 2011/65/EU and (EU) 2015/863
Rating
Compliant with exemption
Exemptions
6c
Material compliance REACH
Regulation
REACH 1907/2006 Article 33 SVHC
Rating
Contains one or more SVHC >0,1%
Details
CAS: 7439-92-1 Lead
