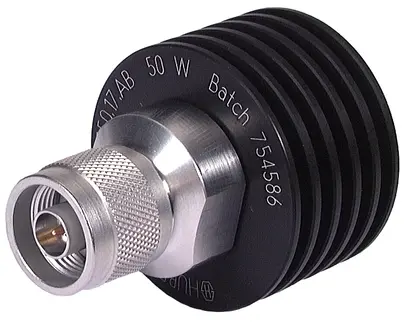

COAXIAL TERMINATION, 50 Ohm, N, plug (male)

Product number 22641938

Identifier 6550.17.AA

Variation -

General Information

Key features

Material Data

Electrical data

Electrical Data (frequency related)

Frequency range	VSWR max	Return loss
0 GHz to 5 GHz	1.201

Electrical Data (power)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

FARNELL with lead time

MOUSER with lead time

DIGIKEY with lead time

Product code	6550.17.AA
Interfaces	N / plug (male)

Interface	N / plug (male)
Centre contact	Brass / Gold Plating (without Nickel underplating)
Outer contact	Brass / SUCOPLATE (R) Plating
Body	Aluminium / Anodized
Insulator	PFA / PTFE
Coupling nut	Brass / SUCOPLATE (R) Plating
Gasket	VMQ (Silicone rubber)

Average power	50 W at 25 °C ambient temperature. Linearly derated to W at 150 °C ambient temperature.
Peak power	1500 W, 5 µs pulse width, 0.05 % duty cycle
