As the demand for high-speed, reliable fiber optic networks grows, the efficiency and quality of fiber splicing methods become ever more critical. Recent laboratory tests conducted at HUBER+SUHNER have shed new light on the performance of mass fusion splicing using flexible ribbon fibers—a technology that promises both speed and consistency for large-scale fiber installations.
What is mass fusion splicing and why does it matter?
Fusion splicing is the gold standard for joining optical fibers, creating a permanent, low-loss connection by melting and fusing fiber ends. When dealing with ribbon fibers—where multiple fibers (typically 12) are arranged side by side—mass fusion splicing enables all fibers in a ribbon to be spliced simultaneously. This dramatically reduces installation time compared to splicing each fiber individually.

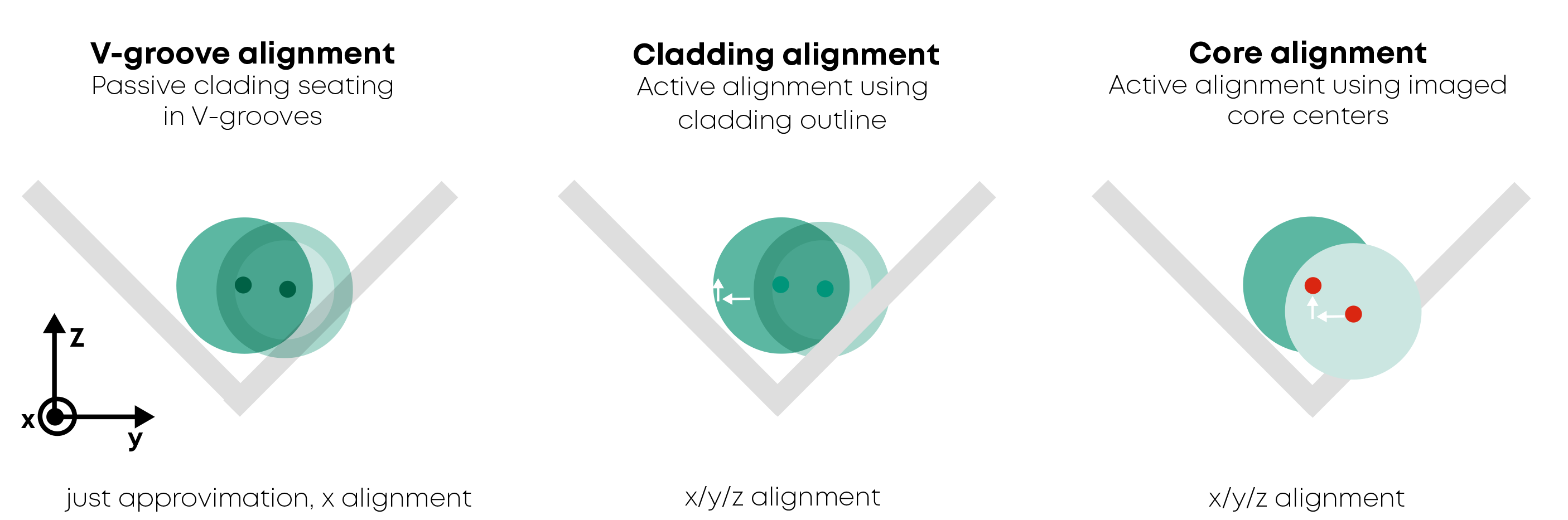

Flexible ribbon fibers, unlike traditional flat ribbons, can bend in all directions, making them easier to handle and install. However, the alignment method for ribbons—passive V-groove alignment—raises questions about potential splice loss.
The experiment: measuring splice loss

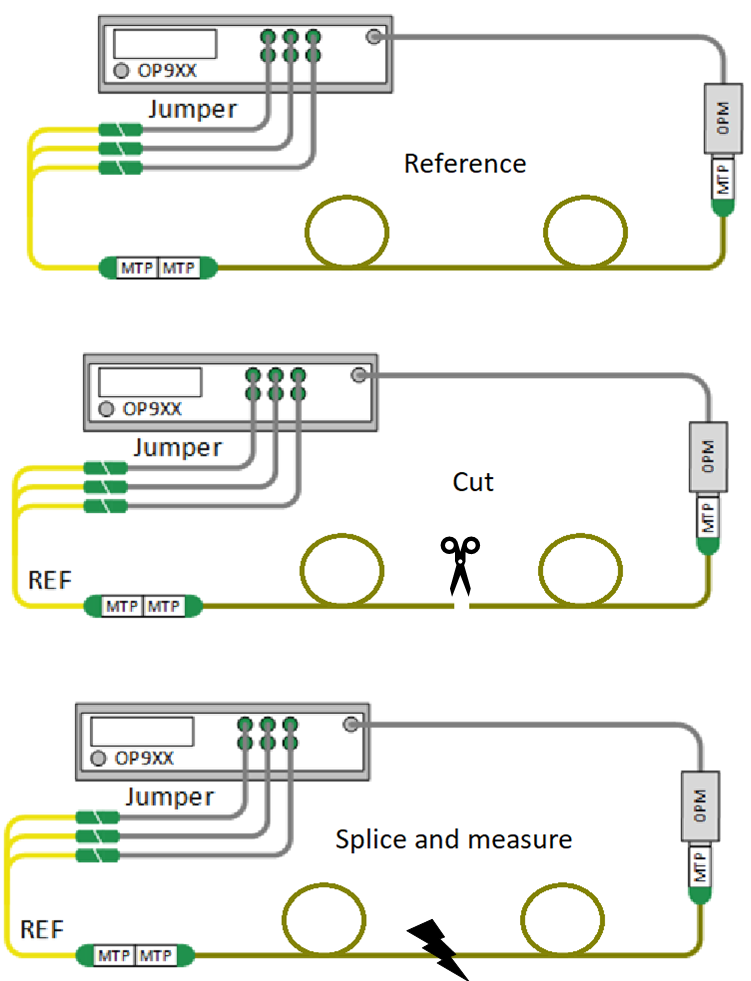

The HUBER+SUHNER team set out to measure the insertion loss (IL) of 50 mass fusion splices (600 fibers in total) at wavelengths of 1310 nm and 1550 nm. Each splice was tested both before and after applying a heat-shrink slim splice protector. The goal was to determine if the protector increased IL and to assess the overall performance of the splicing process.
Key findings
Exceptionally Low Loss: The average splice loss was less than 0.02 dB under all conditions, with 97% of fibers showing a loss of 0.04 dB or below.
Minimal Outliers: Only three fibers at 1310 nm and one at 1550 nm exceeded 0.2 dB loss, with the highest measured at 0.28 dB.

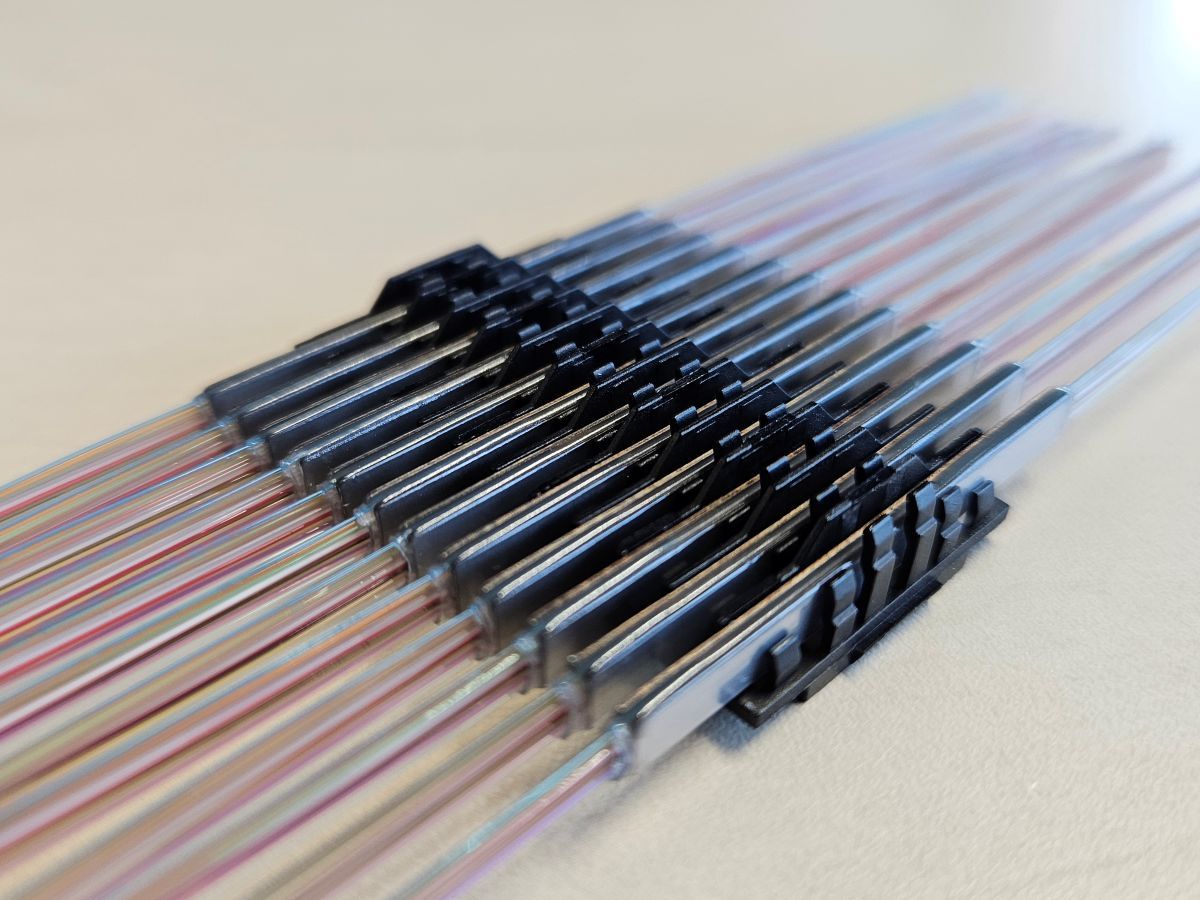

No Impact from Splice Protectors: Adding the slim splice protector did not increase insertion loss, confirming that protection can be applied without sacrificing performance.
Exceeding Industry Standards: The measured losses were five times lower than the ITU-T L.400/L.12 standard, which allows for an average loss of ≤0.1 dB and ≤0.2 dB in 97% of splices.
Practical implications
These results demonstrate that mass fusion splicing with flexible ribbons is not only fast and reproducible but also achieves ultra-low loss, even with passive V-groove alignment. For network designers and installers, this means more efficient deployments and greater confidence in network performance.
Even in cases where a single splice exhibits higher loss, the overall impact on the network is negligible, especially when standard loss budgets are used. The findings also highlight the importance of careful ribbon preparation and alignment to avoid rare outliers.
Final thoughts
While these results are based on controlled laboratory conditions, they underscore the potential of flexible ribbon fibers and mass fusion splicing for next-generation fiber networks. As always, real-world conditions may introduce additional variables, but the data provides a strong foundation for confidence in this technology.
Discover splice loss of mass fusion splicing white paper
