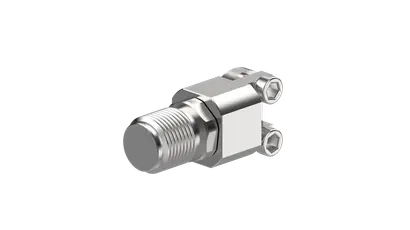

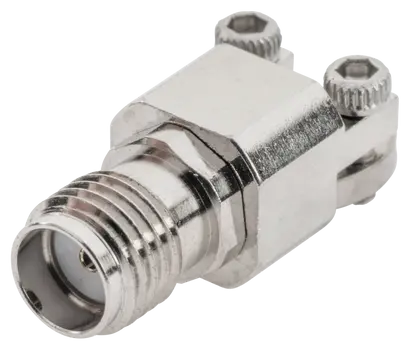

COAXIAL CONNECTOR, SMA, 50 Ohm, Edge mount PCB jack (female)

Product number 85221629

Identifier 92_SMA-S50-0-200/122_NE

Variation Single packaging

General Information

Key features

For microstrip configurations
Fast and easy installation
Precision testing up to 26.5 GHz
Reusable design
Mechanical intermateable with PC 3.5 (3.5 mm standard) and SK (2.92 mm standard)

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0 GHz ... 26.5 GHz	17 dB	1.33

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

FC LANE with lead time

FARNELL with lead time

MOUSER 11 Piece

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Brass / Nickel Plating
Insulator	PEI (Polyether-imide)

Impedance	50 Ω
Interface frequency	26.5 GHz

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%
