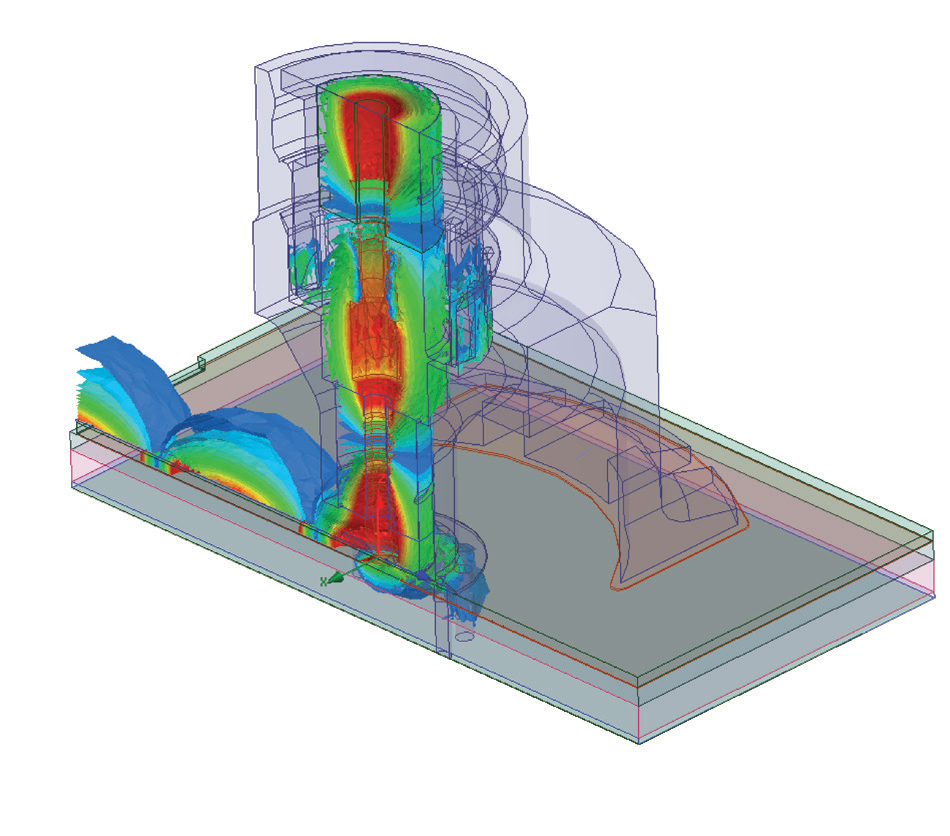

The solderless compression mount multicoax connector MXPD70 engineered for optimal signal integrity in tight spaces, delivers a bandwidth of up to 70 GHz. Its innovative interface design ensures superior mechanical reliability and guarantees precise reproducibility of values, providing accurate and consistent results every time. The ultra-low profile rectangular version can easily be placed under a heater, very close to the chip, to minimize the lossy trace lengths.

Trust MXPD70 to elevate your testing capabilities, providing the performance and reliability essential for applications such as high-speed digital evaluation and reference boards, test and characterization boards, and system testing.

• Superior signal integrity up to 70 GHz, suitable for 112 Gbps data analysis
• 3.4 mm / 0.134 inch pitch signal-to-signal
• Identical layouts for straight and right angle versions
• No hard gold plating required on PCB
• Swivel-mounted interface protection

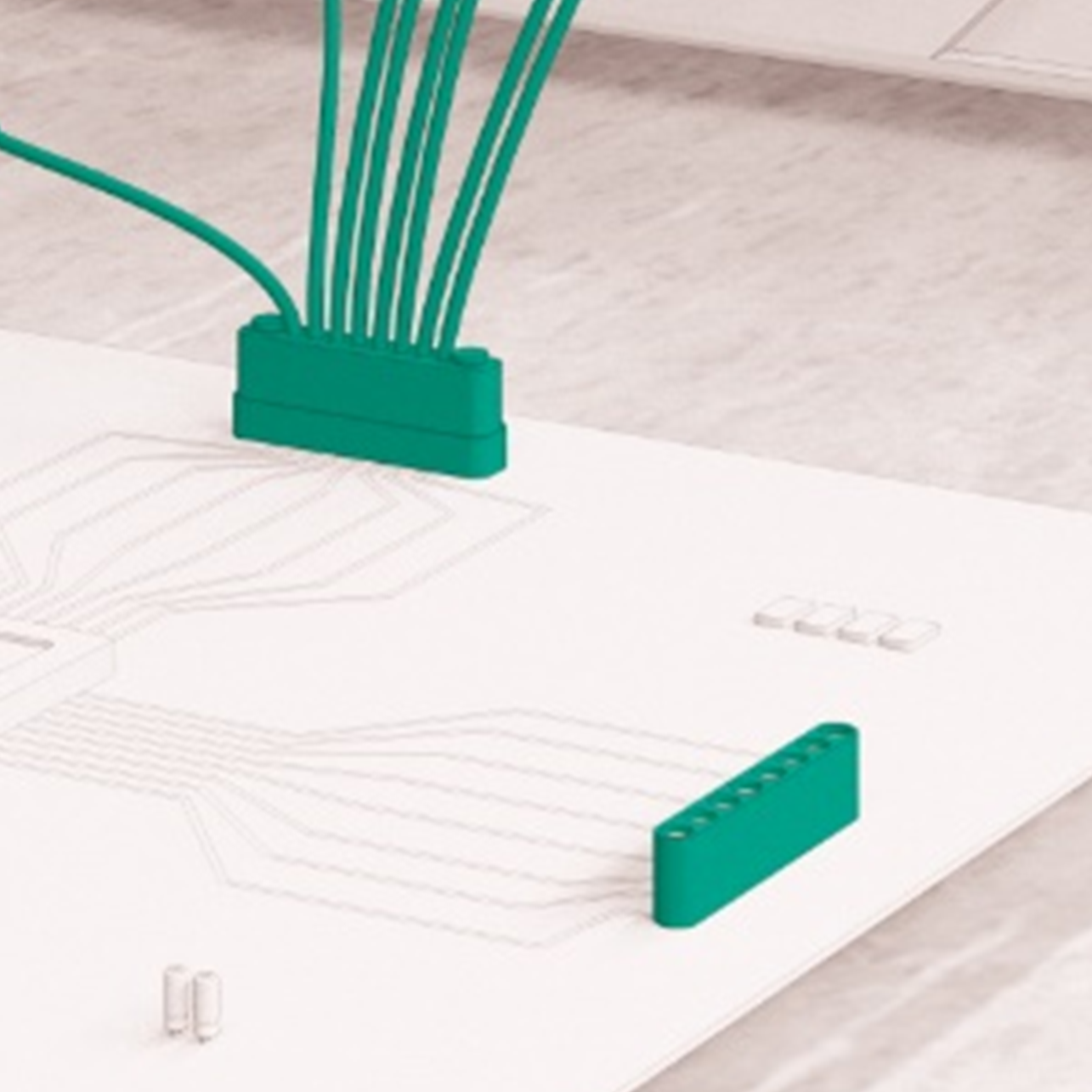

MXPM is the pioneering multicoax solution that supports up to 90 GHz/PAM4, 224 Gbps. By offering a high density pitch of 2.54 mm (0.1 inch), the MXPM line guarantees a hassle-free experience with its user-friendly magnet-mount connection, delivering performance, reliability and values.

Features:

• Operating range at up to 90 GHz
• Broadband characteristic
• 1x8 and 2x8 ganged solutions available
• 2.54 mm (0.1 in.) pitch centre-to-centre
• Standard phase matching down to +/- 1 ps
• Magnetic locking mechanism
• Automatic interface protection
• Cost efficient PCB sockets
• Highly flexible and ultra-stable Multiflex cable

The MXP product line offers a large selection of bandwidths: MXP50 (50 GHz), MXP40 (40 GHz) and MXP18 (18 GHz) that cover data rate requirements up to 56Gbps and beyond.  The entire MXP family comes with the highly flexible and ultra-stable MULTIFLEX cable as a standard.

Features:

• Operating range at up to 50 GHz
• Broadband characteristic
• 1x8 and 2x8 ganged solutions available
• 4 mm (0.16 in.) pitch centre-to-centre
• Standard absolute phase matching down to +/- 2 ps
• Highest density – lowest loss
• Slide-on mating – no threading
• Highly flexible and ultra-stable MULTIFLEX cable
• Extensive technical support
