Semiconductor & High-Speed Digital Testing (HSDT)

Advanced RF interconnects with exceptional density for ever increasing bandwidth requirements

HUBER+SUHNER empowers innovation with advanced semiconductor & high-speed digital testing (HSDT) solutions for laboratories in the most demanding operational environments- ultra-precise, efficient and customized. This includes expert technical support, 3D file libraries, electrical modelling data and customer-specific footprints.


What support do we offer?

Service and support from HUBER+SUHNER involve customized and optimized board connector footprints. Three-dimensional electromagnetic field simulators demonstrate to customers the optimal performance of their board connectors.


Semiconductor & high-speed digital testing (HSDT) demands several different requirements, which HUBER+SUHNER meets. These solutions include high-speed digital chip verification, benchtop testing to check for the best signal integrity performance, PCB connectivity closest to the device under test, and more.


Secondly, testing solutions offer high-speed digital hardware and system verification, including multicoax connectivity between systems and modules with customized solutions.

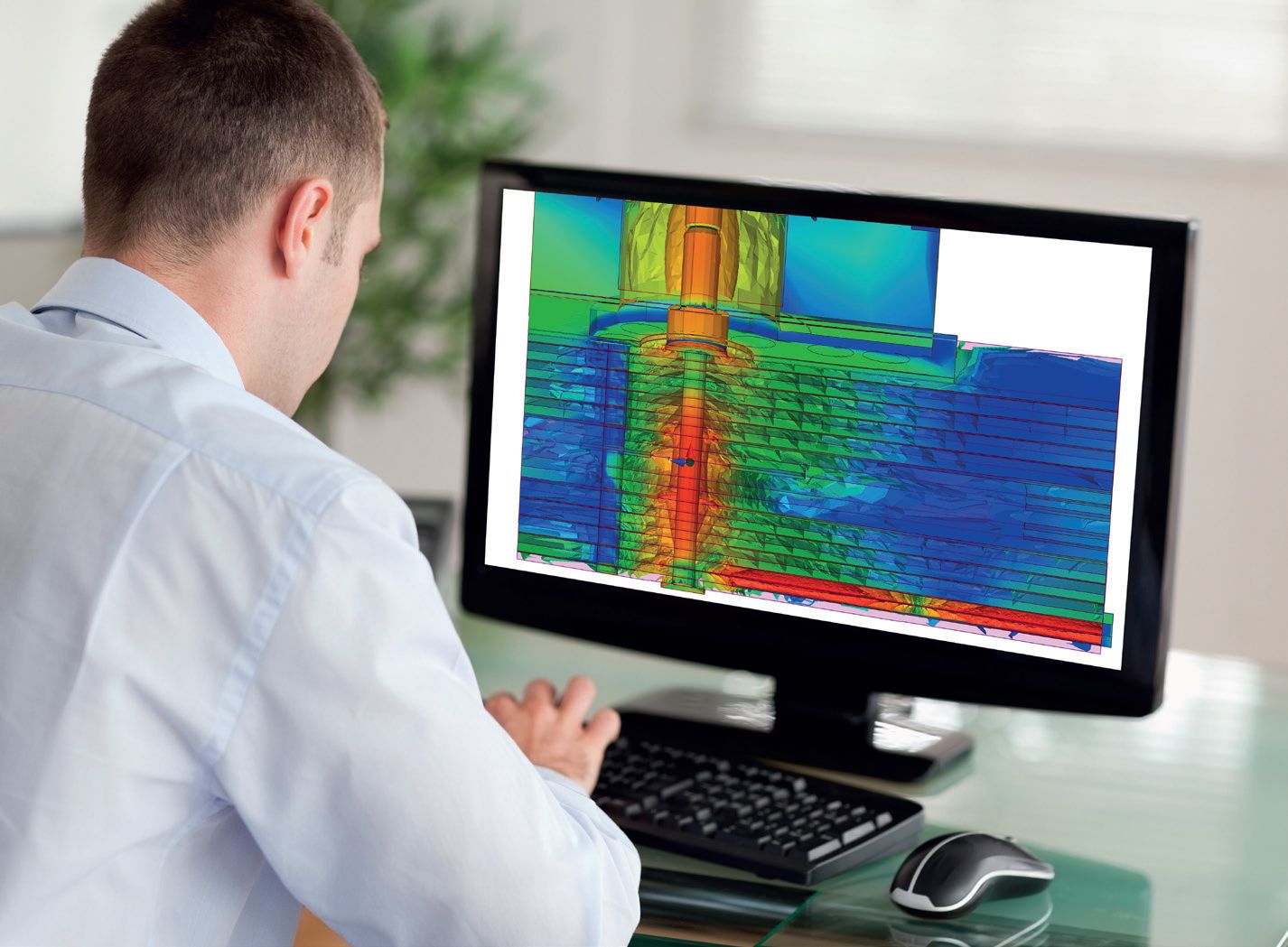

Encrypted HFSS 3D component models

Is your connector performing at your desired frequency range?


Any changes in the stack-up including dielectric material (Dk, Tan D), substrate thickness and metallization thickness can have a significant impact on connector performance. Connector footprints with optimized signal transmissions at the transition to the board, can avoid any unwanted reflection or resonances that might limit electrical performance.


In partnership with ANSYS INC, HUBER+SUHNER now offers customers encrypted HFSS 3D component models for our single and multi-coax PCB connector portfolio.

3D Simulation Models service

Products

Product image

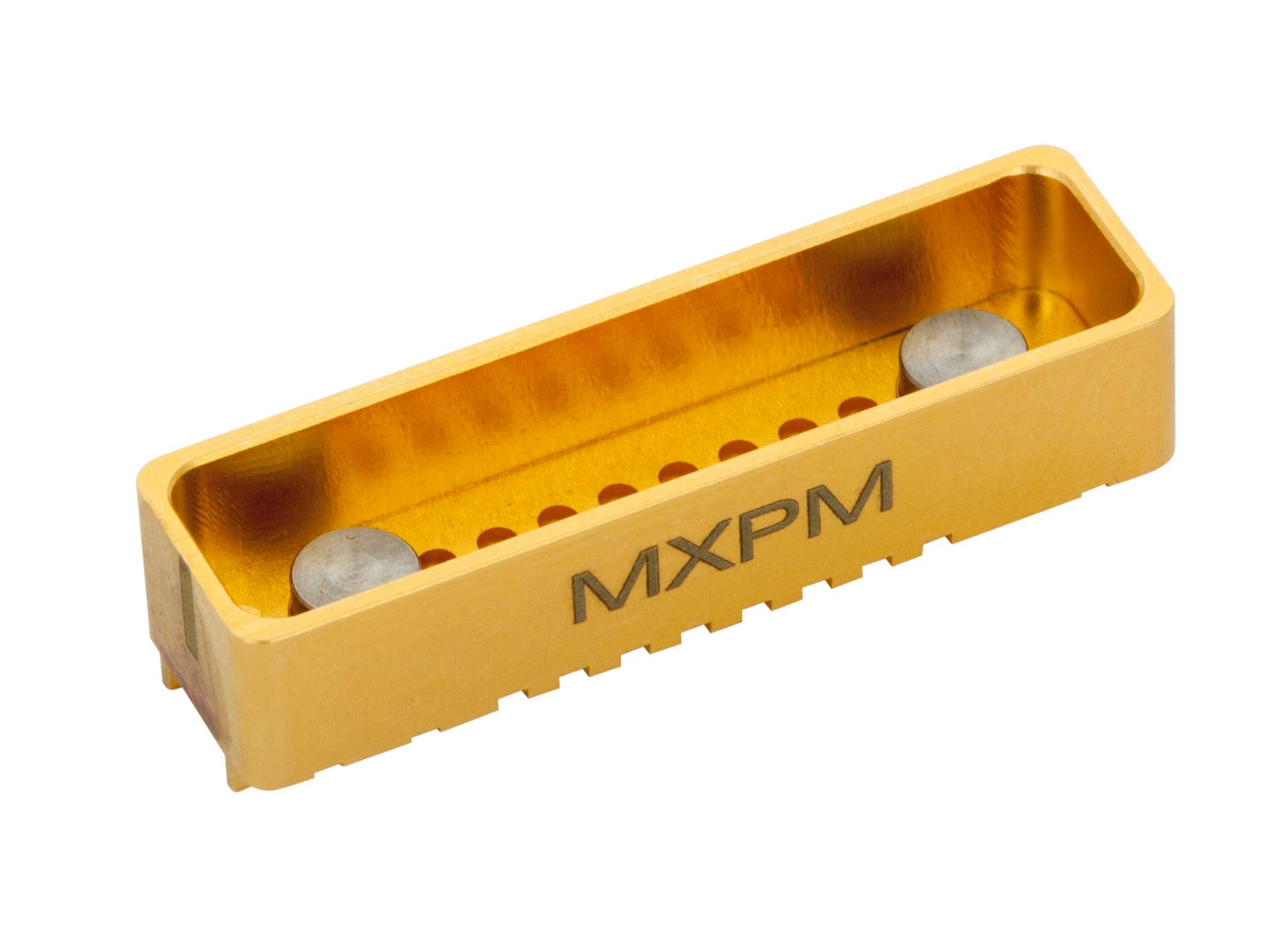

COAXIAL CONNECTOR, MXPM, 50 Ohm, Straight PCB jack (female) 85091041 MXPM is the pioneering multicoax solution that support frequencies to a maximum of up to 90 GHz/E-band range
Product image
COAXIAL CONNECTOR, MXPM, 50 Ohm, Straight PCB jack (female) 85085226 MXPM is the pioneering multicoax solution that support frequencies to a maximum of up to 90 GHz/E-band range
Product image
COAXIAL CONNECTOR, MXPM, 50 Ohm, Straight PCB jack (female) 85091060 MXPM is the pioneering multicoax solution that support frequencies to a maximum of up to 90 GHz/E-band range
Product image
COAXIAL CONNECTOR, MXPM, 50 Ohm, Straight PCB jack (female) 85104412 MXPM is the pioneering multicoax solution that support frequencies to a maximum of up to 90 GHz/E-band range
Product image
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight PCB jack with ground pin in-hole and SMT Signal pin (female) 84099981 The snap-on connector line MMPX is the most ideal single coax-to-PCB system solution for operating frequencies up to 70/90 GHz
Product image
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight PCB jack with ground pin in-hole and SMT Signal pin (female) 84099988 The snap-on connector line MMPX is the most ideal single coax-to-PCB system solution for operating frequencies up to 70/90 GHz
Product image
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight PCB jack with ground pin in-hole and SMT Signal pin (female) 84093961 The snap-on connector line MMPX is the most ideal single coax-to-PCB system solution for operating frequencies up to 70/90 GHz
Product image
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight PCB jack with ground pin in-hole and SMT Signal pin (female) 84093966 The snap-on connector line MMPX is the most ideal single coax-to-PCB system solution for operating frequencies up to 70/90 GHz
Product image
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight PCB jack (female) 84096711 The snap-on connector line MMPX is the most ideal single coax-to-PCB system solution for operating frequencies up to 70/90 GHz
Product image
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight PCB jack (female) 84096752 The snap-on connector line MMPX is the most ideal single coax-to-PCB system solution for operating frequencies up to 70/90 GHz
Product image
MICROWAVE TEST ASSEMBLIES, 3.5mm (male), 3.5mm (male), 50 Ohm, 26.5 GHz, 24in 85207923 INSTRUMENTATION GRADE - Phase and amplitude stable SUCOFLEX microwave test assemblies
Product image
MICROWAVE TEST ASSEMBLIES, 3.5mm (male), 3.5mm (male), 50 Ohm, 26.5 GHz, 36in 85207924 INSTRUMENTATION GRADE - Phase and amplitude stable SUCOFLEX microwave test assemblies
Product image
MICROWAVE TEST ASSEMBLIES, 3.5mm (male), 3.5mm (male), 50 Ohm, 26.5 GHz, 24in 85154814 INSTRUMENTATION GRADE - Phase and amplitude stable SUCOFLEX microwave test assemblies
Product image
MICROWAVE TEST ASSEMBLIES, 3.5mm (male), 3.5mm (male), 50 Ohm, 26.5 GHz, 36in 85088164 INSTRUMENTATION GRADE - Phase and amplitude stable SUCOFLEX microwave test assemblies
