Terminations overview

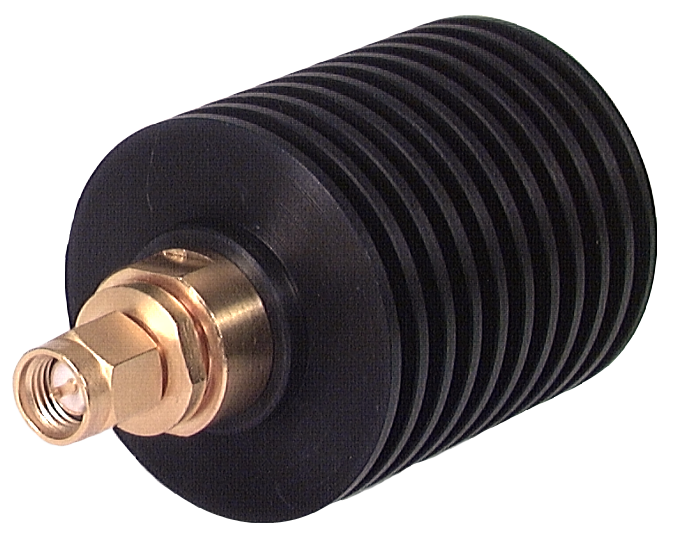

Terminators (also called RF loads or dummy loads) are applied to an open end of a transmission line, e.g. an RF port, to prevent the back-reflection of an RF signal. They are used in a large variety of test and measurement, defense and communication applications.

• Impedance matched
• Standard or precision types
• Various bandwidth
• Low and medium power

Feed through terminations are designed to connect 50 ohm transmission lines or RF devices with high impedance test equipment, e.g. oscilloscope.

• Allow high input impedance RF measurement

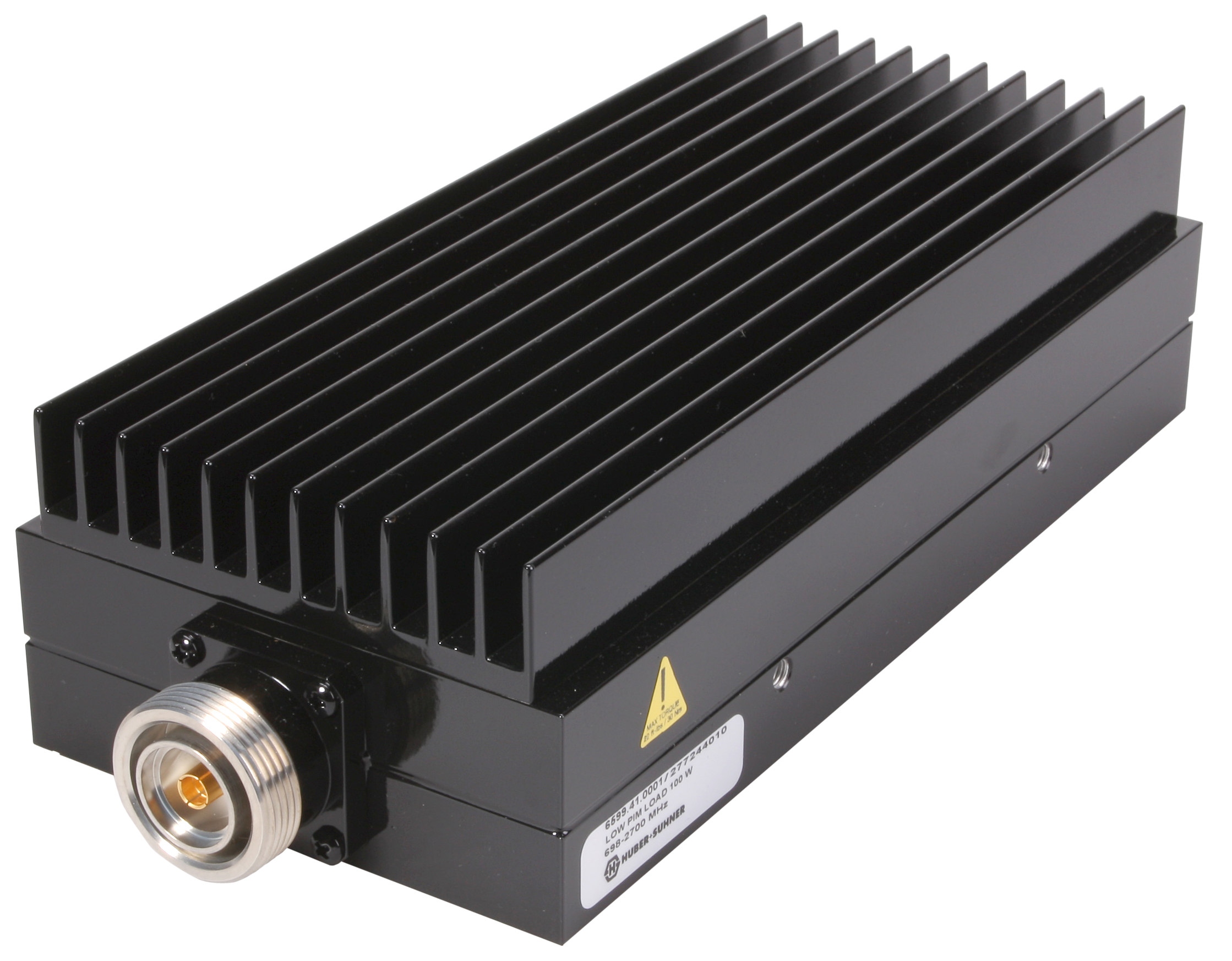

HUBER+SUHNER offers high performance intermodulation loads for test and measurement in multicarrier high RF power radio applications. They are primarily used to terminate open transmission lines in PIM sensitive applications such as an open port of a hybrid coupler. These intermodulation loads are made by using high performance material, especially selected to obtain the best PIM and VSWR results.

• High stability
• High repeatability
• Outstanding low PIM levels (better than -160 dBc)
• Other power levels and customised designs available on request
