Flexible overview

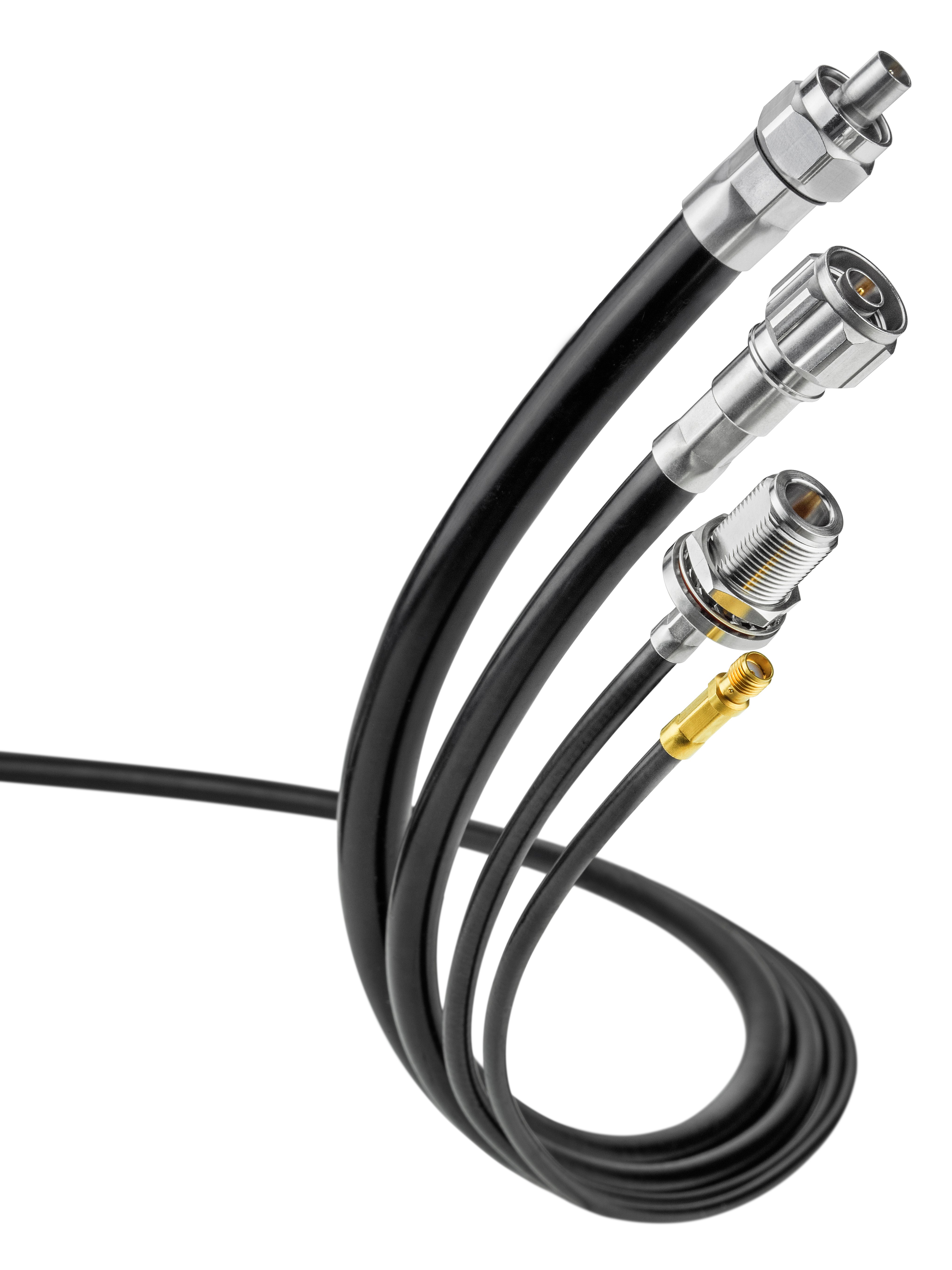

ENVIROFLEX cable assemblies are halogen-free and low smoke alternatives to RG cable assemblies, with dimensions that surpass international RG standards.

• Applicable in frequencies up to 6GHz
• UL AWM recognized portfolio
• HUBER+SUHNER RADOX® jacket material

MINI141™ is an enhanced, low loss version of the MINIBEND flexible coaxial cable assembly with increased phase stability and power handling capacity which is designed for use in low profile, internal, point-to-point interconnections between RF modules within communications systems. MINI141™ replaces 0.141 inch custom semi-rigid cables with standard flexible cables providing 20% lower attenuation and eliminating the need for predefined custom lengths and bend configurations.

• Applicable in frequencies up to 40 GHz
• 100% tested preassembled coaxial cable assembly
• Patented solder-less cable junction

MINI250™H is for payload integration cabling, helping transmit antenna signals while providing the ability to complete long runs between cable subsystems. It is a significant step-function and low-loss leader in the mold of the MINI141™H cable. We now complement the MINIBEND™ family with a design that allows us to compete in longer length, high-power, low-loss cables, with a size above the MINI141™H offering. We help solve your need for products that withstand extreme conditions with low-profile and low-loss solutions. A radiation-resistant version with an ECTFE Jacket is also available, denoted as MINI250™HB.

• Applicable in frequencies up to 26 GHz
• 100% tested preassembled coaxial cable assembly
• Patented solder-less cable junction

MICROBEND™ features include 35% lower loss than .047 inch semi-rigid cable, a minimum bend radius of 1.52 mm (0.060 inch), and triple shielding for high isolation. It eliminates the need for predefined custom lengths and bend configurations. MICROBEND™ was designed for use as internal point-to-point interconnections between modules in microwave and fiber optic switching systems. It is designed for use in complex, congested environments where higher cable retention force is required. When installed and bent at the minimum bend radius, microbend will tolerate multiple 90° rotation.

• Applicable in frequencies up to 90 GHz
• 100% tested preassembled coaxial cable assembly
• Patented solder-less cable junction

The MINIBEND™ series is a flexible, preassembled coaxial cable assembly line, designed for internal point-to-point interconnections between RF modules within systems. Allowing bending immediately behind the connector with excellent resistance to flame and corrosion, the series boasts impressive pull strength and mechanical durability. It is 100% tested to ensure the highest quality performance.

• Applicable in frequencies up to 65 GHz
• 100% tested preassembled coaxial cable assembly
• Patented solder-less cable junction

NANOBEND™ is a flexible, high-frequency coaxial cable assembly that is designed for use in low profile, internal, point-to-point interconnections between RF modules within communications systems. As the newest entrant found in the MINIBEND™ family of standard flexible cables, NANOBEND brings the same capabilities you depend on, but now in the smallest diameter available.

• Applicable in frequencies up to 110 GHz
• 100% tested preassembled coaxial cable assembly
• Patented solder-less cable junction

RADOX® RF coax cable assemblies are designed specifically for rail applications and are fully compliant with European industry standards. RADOX® RF cables assemblies replace standard RG cable assemblies, while being and are smoke and flame resistant.

• Applicable in frequencies up to 6 GHz, specific items up to 8 GHz
• Meets railway approvals
• RADOX® jacket material

Our standard RF flexible cable assemblies offer a variety of options, such as 50 or 75 Ohms, single or double shielding, and low loss, to deliver high quality performance up to 8 GHz.

• Applicable in frequencies up to 6 GHz, specific items up to 8 GHz
• Excellent insertion loss
• High flexibilty due to rotary swaging technology

The S-series is a line of cost-efficient, low loss RF and microwave cables assemblies. These versatile assemblies are characterised by their very low insertion loss across a wide frequency range. S-series cable assemblies are made of environmentally-friendly, halogen-free materials.

• Applicable in frequencies up to 18 GHz
• Excellent insertion loss
• LSFH jacket available

The SPUMA cables combine low-loss and high-flexibility for easier handling and installation due to its unique construction. They provide lowest loss with halogen-free materials, shielding and VSWR optimisation up to 8 GHz.

• Applicable in frequencies up to 6 GHz, specific items up to 8 GHz
• Excellent insertion loss
• High flexibilty due to rotary swaging technology

SUCOFLEX 100 series high end flexible microwave cable assemblies offer superior electrical and mechanical performance for static and dynamic applications. This cable type is ideally suited to test and measurement applications and used in aerospace, defence and medical systems.

• Applicable in frequencies up to 50GHz
• Excellent insertion- and return loss
• Reliable and robust- wide range of products

When it comes to test and measurement, the SUCOFLEX® 500 assemblies guarantee the highest level of satisfaction. Thanks to their unique cable and connector design, they deliver the best phase and amplitude stability versus flexure, movement, temperature and tensile stress, combined with outstanding return and insertion loss up to 70 GHz.

• Applicable in frequencies up to 70GHz
• Excellent insertion and return loss, phase stable
• Outstanding phase and amplitude stability with flexure and movemen
• Very long service life (>100.000 flex cycles)
• Variety of interface options available
