Surge protective devices accessories overview

HUBER+SUHNER series 9076 grounding kits enable reliable grounding of today’s usual corrugated copper tube and RG cables for radio transmitter antenna installations.

• Quick and easy installation
• No loose piece parts
• Low contact transition resistance (1 mΩ max.)
• Grounding cable AWG6 (16 mm2)
• Current handling capability 100 kA 8/20 μs, 25 kA 10/350 μs
• Waterproof IP67
• Corrosion resistant
• Operating temperature −40 to 85 °C

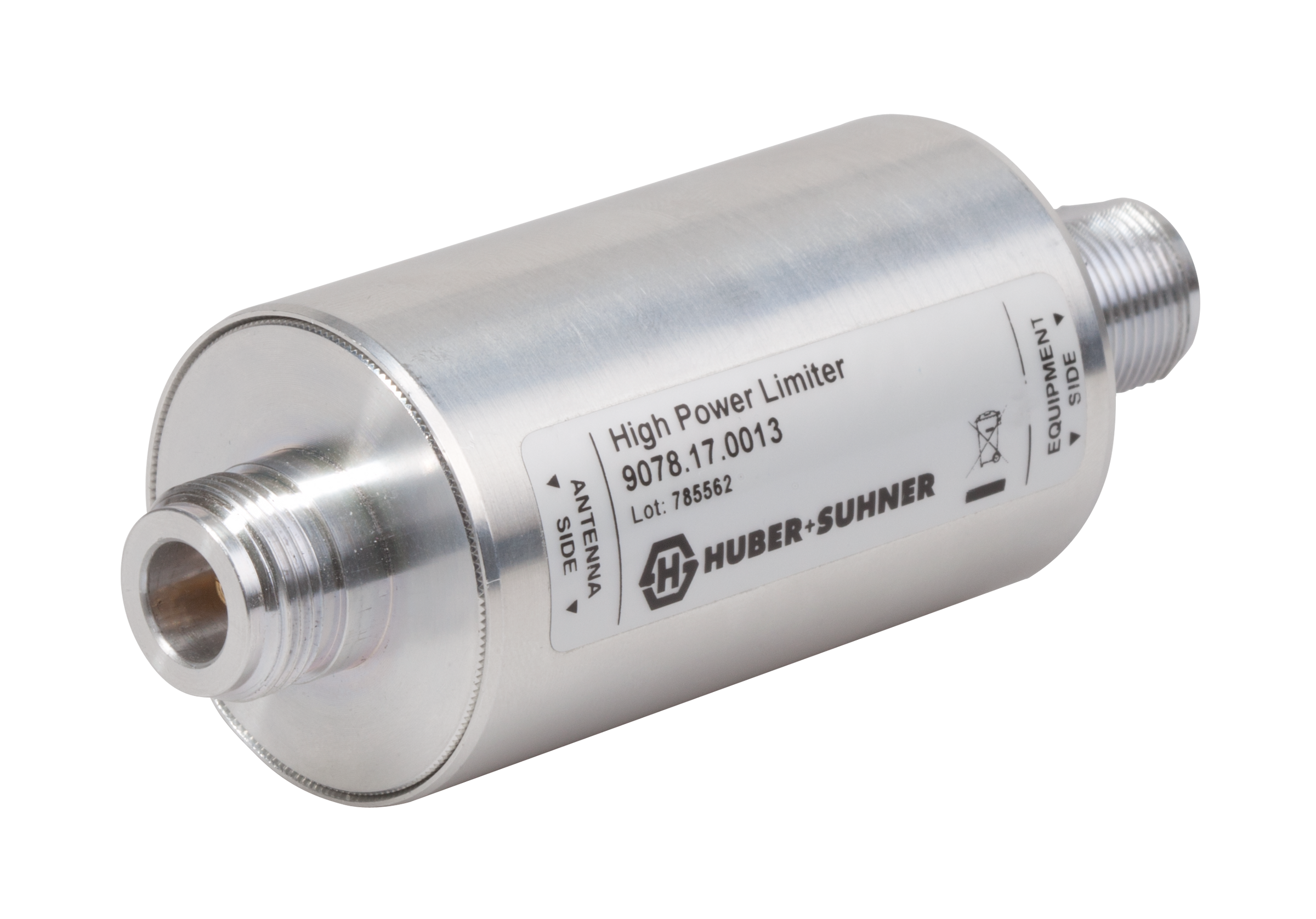

High power limiter feature a combination of lightning and HPM protection in one unit which is unique in the market. These products will be used in a variety of defense applications such as Electronic Intelligence (ELINT), Signals Intelligence (SIGINT), Command, Control, Communication Intelligence, Surveillance and Reconnaissance (C³ISR) or Ship’s Signal Exploitation.

HUBER+SUHNER gas discharge tube protectors are normally delivered without gas tube some times called gas capsule. This allows the customer to select the appropriate GDT in accordance with his application conditions, especially the maximum operation signal voltage amplitude.

• Protective caps
• Mounting wacher nut sets
• Blanking plugs
• Grounding cables
• Grounding rings
• Mounting brackets
• Grounding kits

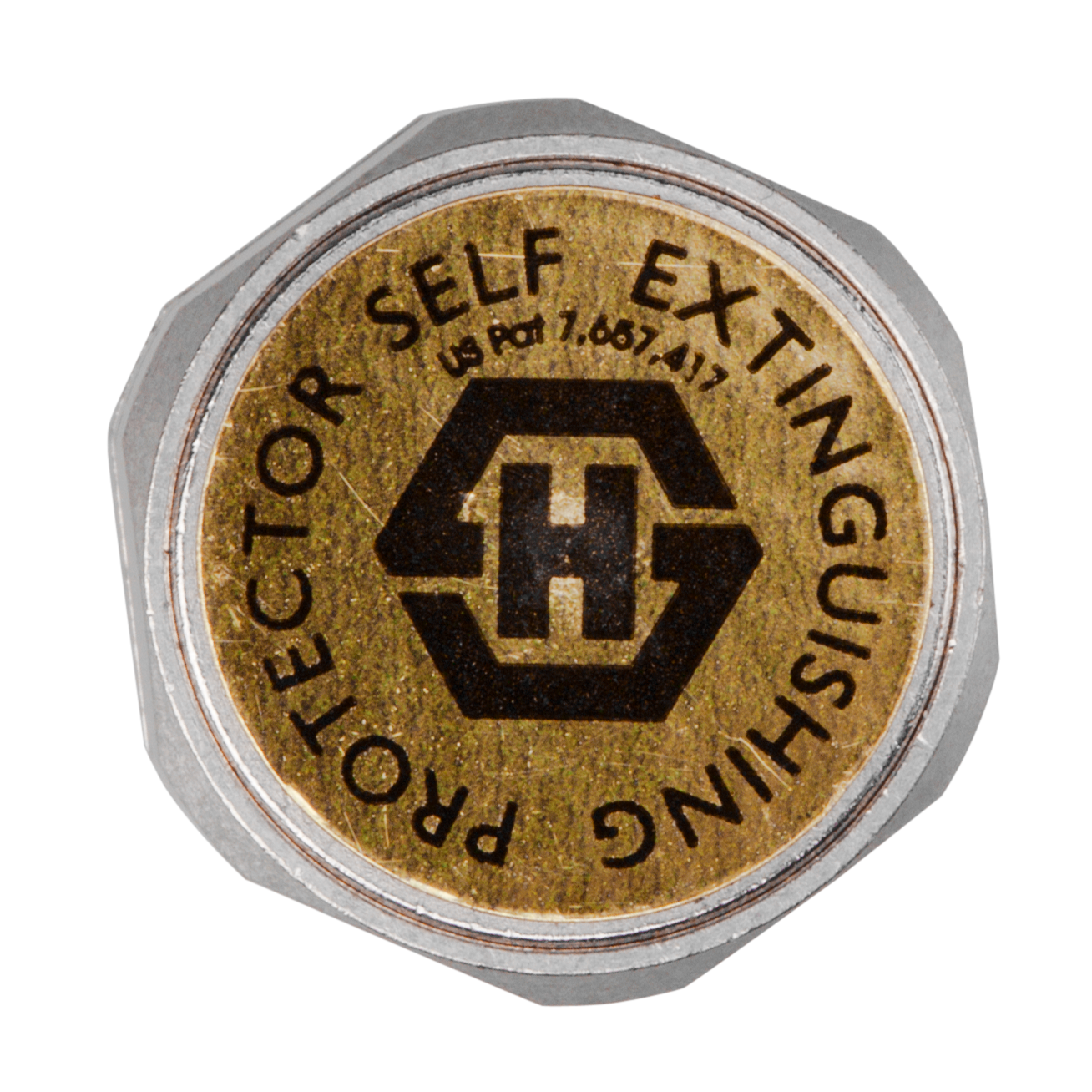

The patented Semper concept enhances the safety and reliability of the well-known and proven gas discharge tube (GDT) protector principle impressively. It eliminates the risk of gas discharge tube "hold on" due to DC line powering or high powered RF signals, which will render the system inoperable and can destroy the discharge tube. HUBER+SUHNER offers a unique concept of self-extinguishing GDT protectors. The unique and patented Semper solution is realised as a simple unit which enables the use of the comprehensive range of HUBER+SUHNER GDT protectors with a replaceable GDT. An easy retrofit of existing GDT protectors is possible or available as complete Semper protectors in a variety of configurations.

• Self-extinguishing gas discharge tube with automatic recovery
• Extinguishing under any coaxial line condition including:
• Malfunction of electronic fused DC supplies
• Malfunction of RF line monitoring
• Absence of any such mechanism
• Can be employed for any HUBER+SUHNER GDT protectors with exchangeable gas tube
• Field replacement allows cost-effective system upgrades
• Product options ensure availability for any application
• Higher safety
• Negligible system downtime
