Test assemblies overview

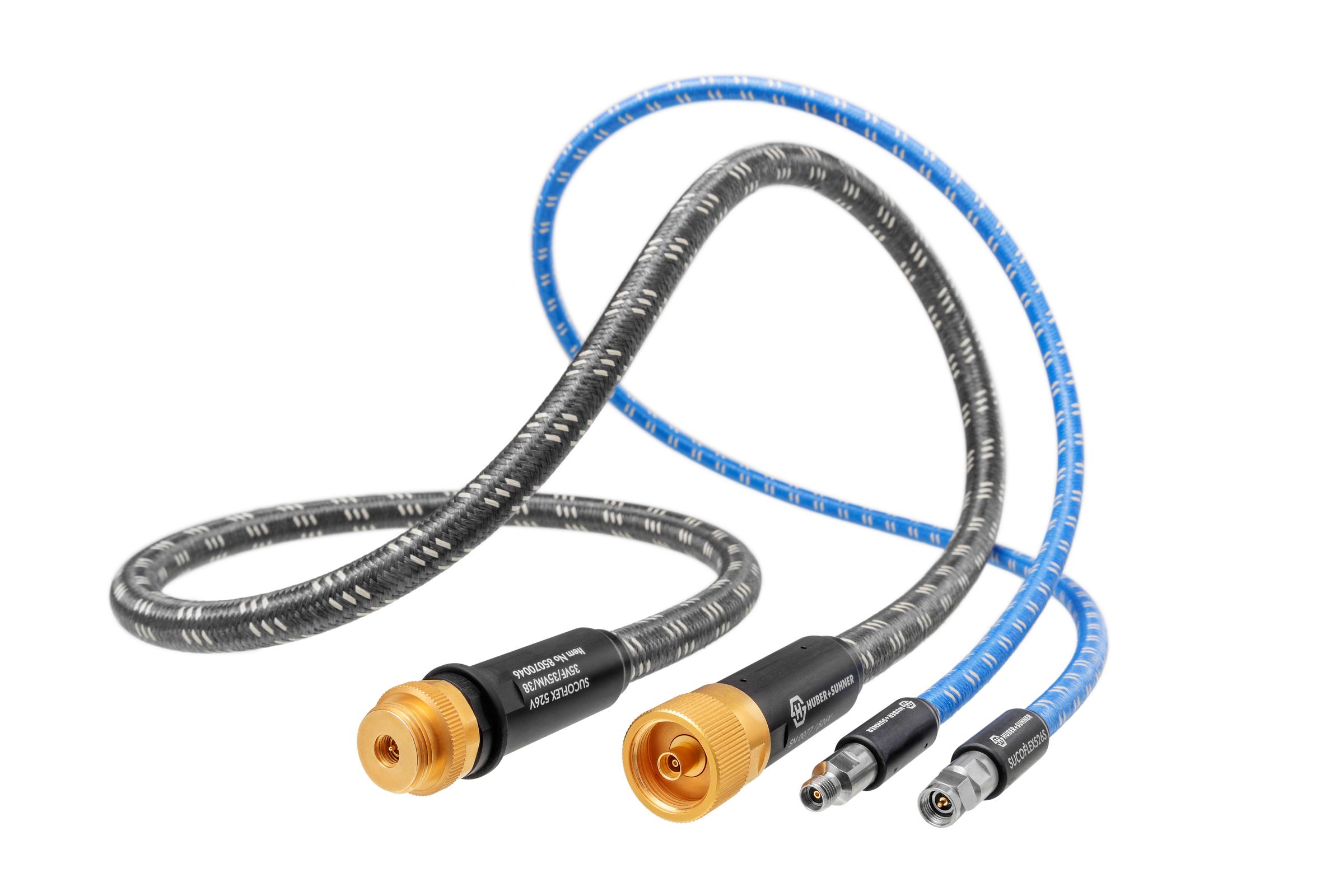

When it comes to test and measurement, the SUCOFLEX® 500 assemblies guarantee the highest level of satisfaction. Thanks to their unique cable and connector design, they deliver the best phase and amplitude stability versus flexure, movement, temperature and tensile stress, combined with outstanding return and insertion loss up to 70 GHz.

• Applicable in frequencies up to 70GHz
• Excellent insertion and return loss, phase stable
• Outstanding phase and amplitude stability with flexure and movemen
• Very long service life (>100.000 flex cycles)
• Variety of interface options available

The flexible, armoured SUCOTEST 110/145 test cable assemblies are designed for demanding high-frequency applications, offering flexibility and durability for precise measurements up to 110/145 GHz. These cables excel in maintaining excellent return loss, phase stability, and amplitude stability even when subjected to bending, making them ideal for high-density and modular test setups.

• Dependable electrical performance up to 110/145 GHz
• Excellent amplitude and phase stability with flexure, crush and torque resistance
• Superior return loss
• Rugged construction for extended service life
• Stock assemblies available in 6, 12, and 18-inch lengths, with male and female 0.8 and 1.0 mm connectors

SUCOTEST 18 cable assemblies feature excellent electrical performance (low insertion loss combined with unique loss stability and excellent return loss). SUCOTEST 18 is ideal for daily use in components and assembly shops, test labs and automatic test equipment applications.

• Impedance 50 Ω
• Applicable in frequencies up to 18 GHz
• Low insertion loss
• Excellent VSWR
• Unique loss stability
• There is no cable spring back during measurement procedures; the assembly stays in position

SUCOTEST 18A armoured test assemblies offer excellent electrical performance (low insertion loss combined with unique stability and excellent return loss) for heavy duty, outdoor and harsh environment measurements up to 18 GHz. SUCOTEST 18A armoured test assemblies are ideal for testing wireless communication infrastructures, defense and ground systems and in daily use in components and assembly shops.

• Impedance 50 Ω
• Applicable in frequencies up to 18 GHz
• High flexibility in spite of armouring
• Phase and loss stability with flexure
• Crush-, torque- and kink-resistant
• Waterproof IP68

HUBER+SUHNER TL-8A armoured assemblies are designed for testing components or equipment up to 8 GHz.The excellent electrical performance combined with a high mechanical endurance is ideal for use in test labs.

• Impedance 50 Ω
• Applicable in frequencies up to 8 GHz
• High mechanical endurance
• Excellent insertion and return loss
• High mating cycle
• N connector with quick-lock nut
• Excellent performance to price ratio
• Free of halogen

HUBER+SUHNER TL-P assemblies are designed for indoor and outdoor applications where passive intermodulation (PIM) requires testing. This assembly family is based on a flexible cable which is optimised up to 4 GHz and protected with a steel armouring. The robust design is completed with a moulded protection between connector and cable.

• Impedance 50 Ω
• Applicable up to 4 GHz
• Excellent PIM performance (≤ −160 dBc)
• High mechanical endurance
• Return Loss performance
• High mating cycle (> 2000)
• Highly flexible, rugged and reliable design
• Easy to handle for work in field
• Excellent performance to price ratio
