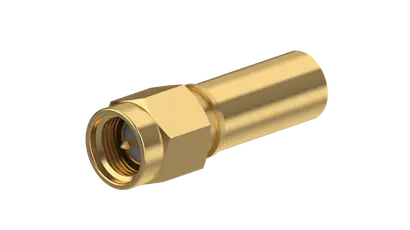

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

Product number 22650739

Identifier 11_SMA-50-3-6/111_NH

Variation Bulk packaging

Choose a variant

Bulk packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 8 weeks (ex works)

Distributor

RS COMP. 50 Piece

RICHARDSON RFPD with lead time

MOUSER 302 Piece

DIGIKEY 200 Piece

MASTER ELECTR. 62 Piece

Product code	11_SMA-50-3-6/111_N
Interface type	SMA
Available as assembly only	No
Cable group	U9 U41 U11

Interface type	SMA
Gender	plug
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Coupling nut	Bronze / Gold Plating (Nickel underplated)
Gasket	VMQ (Silicone rubber)
Crimp ferrule	Copper / Gold Plating (without Nickel underplating)

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0041 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	U9 - 3 mm / 50 Ohm U41 - 3 mm / 50 Ohm U11 - 3 mm / 50 Ohm
Suitable cables	RG_223_/U
Suitable cables	RG_142_B/U
Additional cables	RG_400_/U RADOX_RF_400
