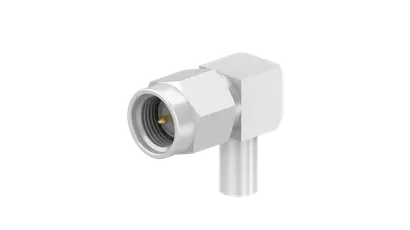

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

Product number 84117809

Identifier 16_SMA-50-2-112/133_NP

Variation Bulk packaging

Choose a variant

Bulk packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0 GHz ... 1 GHz	32 dB	1.05
1 GHz ... 2.5 GHz	29 dB	1.07
2.5 GHz ... 5 GHz	26 dB	1.11

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

Product code	16_SMA-50-2-112/133_N
Interface type	SMA
Available as assembly only	No
Cable group	U4

Interface type	SMA
Gender	plug
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Brass / SUCOPRO Plating
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PTFE (Polytetrafluoroethylene)
Coupling nut	Brass / SUCOPLATE (R) Plating
Gasket	VMQ (Silicone rubber)
Crimp ferrule	Copper / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	18 GHz

Weight	45 g
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

Specifications

Related products

Suitable cables

RADOX OFL - RG316D/RD316 LSFH, 50 Ohm, 8 GHz, 105°C, ø3.2 mm, RADOX® jacket

85182099

RADOX OFL RF 316 D

RG174D alternative, 50 Ohm, 6 GHz, 85°C, ø3.1 mm, PUR jacket

22511668

G_02212_D-02

RG174D alternative, 50 Ohm, 6 GHz, 85°C, ø3.1 mm, PVC jacket

22510112

G_02232_D

RG174D LSFH, 50 Ohm, 6 GHz, 105°C, ø3.2 mm, RADOX® jacket

22511671

GX_02272_D-02

RG316D alternative, 50 Ohm, 6 GHz, 200°C, ø3 mm, FEP jacket

22511127

K_02252_D-08

RG316D alternative, 50 Ohm, 6 GHz, 200°C, ø3 mm, FEP jacket

22511904

K_02252_D-60

RG316D LSFH, 50 Ohm, 6 GHz, 105°C, ø3.16 mm, RADOX® jacket

22512281

ENVIROFLEX_316_D

RG316D LSFH, 50 Ohm, 6 GHz, 105°C, ø3.16 mm, RADOX® jacket

84011098

ENVIROFLEX_316_D-01

RG316D LSFH, 50 Ohm, 8 GHz, 105°C, ø3.2 mm, RADOX® jacket

85023719

RADOX_RF_316_D

RG316D LSFH, 50 Ohm, 8 GHz, 105°C, ø3.16 mm, RADOX® jacket

85070084

ENVIROFLEX_316_D-AM

RG316D LSFH type, 50 Ohm, 6 GHz, 85°C, ø3.16 mm, LSFH jacket

85087103

ENVIROFLEX_B316_D

RG316D/RD316, 50 Ohm, 6 GHz, 200°C, ø3 mm, FEP jacket

22510218

K_02252_D

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead
