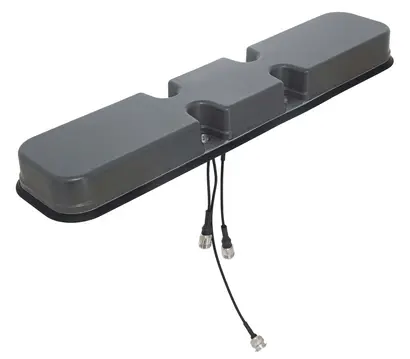

SENCITY® Rail MIMO Low Profile Antenna with GPS

Product number 85106685

Identifier 1399.99.0072

Variation -

General Information

Key features

Railway rooftop antenna for 2G/3G/4G/5G cellular and Wi-Fi 6E bands
Supports 2x2 Cellular MIMO for 3G, 4G and 5G
Supports 2x2 Wi-Fi MIMO in all Wi-Fi 6E bands
Rugged design, meets EN 50155 Railway Standard and Fire retardant according to EN 45545-2 and NFPA-130
Includes embedded passive GPS antenna (requires separate LNA such as 86010142)
High Voltage and High Current protection for use under catenary lines
Extremely low profile (40mm)

How to use it

As the onboard antenna in deployment for Rail communication train-to-ground systems with tight tunnel guages

This product is available at:

HUBER+SUHNER

Lead time on request

Distributor

FARNELL with lead time

RS COMP. with lead time

MOUSER with lead time

RS AMERICAS with lead time

DIGIKEY with lead time

Bands	694 MHz ... 960 MHz, VSWR 1.8, Gain 5 dBi 1350 MHz ... 1450 MHz, VSWR 1.9, Gain 7 dBi 1450 MHz ... 2700 MHz, VSWR 1.6, Gain 6.5 dBi 3300 MHz ... 4900 MHz, VSWR 1.8, Gain 7.5 dBi 4900 MHz ... 5150 MHz, VSWR 1.8, Gain 9 dBi 5150 MHz ... 7125 MHz, VSWR 1.8, Gain 8 dBi GPS: 1574.4 MHz ... 1576.4 MHz, VSWR 1.8
Remarks	For further information please refer to data sheet.

Weight	1.3 kg
Dimensions	40 mm x 108 mm x 474 mm (Height x Width x Depth)
Remarks	High-voltage-protection: no voltage on RF port, if catenary line touches antenna (EN 50124-1, 3.8 kVDC, 25 kVAC) High-current-protection: Designed acc. to UIC 533, DC-grounded antenna element (protection against lightning and short circuit with catenary lines(40kA/0.125s). Corrosion: Low corrosion design acc. to MIL-F-14072(E). Mounting: Shall be installed in longitudinal position to the wind/driving direction. 4x composite sealing washers included for silicone-free sealing of the mounting screws.

Radome material	PC (Polycarbonate)
Radome colour	RAL 7043 (dark grey)
Back plate/base plate material	Aluminum
Back plate/base plate plating	Passivated (Plating)
Back plate/base plate colour	Grey

Operation temperature	-55 °C ... 85 °C
Storage temperature	-55 °C ... 85 °C
Environment (application)	Outdoor
Ingress protection (IP Rating)	Mated / IP69
Flammability rating	EN 45545-2 R24 HL3
Solar radiation	UL 746C, F1
