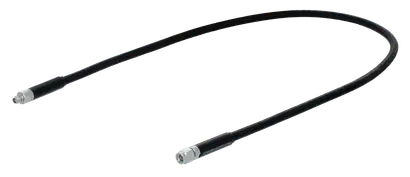

MICROWAVE TEST ASSEMBLIES, 1.0mm (female), 1.0mm (female), 50 Ohm, 110 GHz, 6in

Product number 85229041

Identifier ST110/21PC10/21PC10/6in

Variation -

General Information

Key features

Product configuration

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

This product is available at:

HUBER+SUHNER

Lead time 12 weeks (ex works)

Distributor

RS COMP. with lead time

MOUSER with lead time

RS AMERICAS with lead time

DIGIKEY with lead time

Type of cable	Sucotest_110
Type description connector A	SF_21_PC1.0 (straight female)
Type description connector B	SF_21_PC1.0 (straight female)
Length	152 mm
Length	6 inch
Length type	REF to REF

Impedance	50 Ω
Max. operating frequency	110 GHz
Min. return loss	14.7 dB
VSWR max	1.45
Max. insertion loss	3.7 dB
Propagation velocity	70 %
Min. screening effectiveness	> 90 dB
Max. screening frequency	18 GHz
Amplitude stability vs. flexure	+/- 0.2 dB
Phase stability vs. flexure	+/- 20 °
