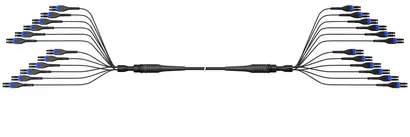

MLC-HT, 24F, 12x LC uniboot, 12x LC uniboot, SM A2

Name: MLC-HT, 24F, 12x LC uniboot, 12x LC uniboot, SM A2
SKU: 85012383

Product number 85012383

Identifier HH024_E0020A_SG038ZG055Z8U8USS

Variation: 20m

Choose a variant

20m

Key features

How to use it

Choose a variant

20m

General data

Side A / Left

Interface	connectorized
Type	Fiber Optic Connector
Connector family	LC
Gender	Plug
Housing colour FO Connector	Black
Clip type	Uniboot
Clip family	Classic
Boot colour	Black
Mating cycles with repeated cleaning	1000
Mechanical Interface Standard	IEC 61754-20, TIA 604-10-A (LC)
Polishing	UPC
Endface polishing angle	0°
Insertion loss 97%	≤ 0.25 dB
Insertion loss typical	≤ 0.12 dB
Return loss	≥ 50 dB
Breakout type FO	staggered
Shortest breakout lenght FO	380 mm
Longest breakout length FO	1030 mm
Breakout quantity	12 pcs

Side B / Right

Interface	connectorized
Type	Fiber Optic Connector
Connector family	LC
Gender	Plug
Housing colour FO Connector	Black
Clip type	Uniboot
Clip family	Classic
Boot colour	Black
Mating cycles with repeated cleaning	1000
Mechanical Interface Standard	IEC 61754-20, TIA 604-10-A (LC)
Polishing	UPC
Endface polishing angle	0°
Insertion loss 97%	≤ 0.25 dB
Insertion loss typical	≤ 0.12 dB
Return loss	≥ 50 dB
Breakout type FO	staggered
Shortest breakout lenght FO	550 mm
Longest breakout length FO	1100 mm
Breakout quantity	12 pcs

Fiber Optic Cable

Cable Description	Glass armoured multi fiber loose tube cable
Fiber quantity	24
Fiber type	E9/125A2
CPR class	Dca-s1a,d1,a1
Strain relief	glass-roving
Outer tube diameter	1 x 2.8 mm
Steel armoring	LSFH
Outer jacket diameter	7mm
Outer jacket material	LSFH
Tensile strength during installation	2000 N
Tensile strength in service	1200 N
Min. bending radius during installation	110 mm
Min. bending radius in service	70 mm
Crush resistance during installation	5000 N/dm
Crush resistance in service	2000 N/dm
Fire propagation standard	IEC 60332-1-2 IEC 60332-3-25 UL 1666
