RG214 LSFH, 50 Ohm, 6 GHz, 105°C, ø10.8 mm, RADOX® jacket

Product number 22511988

Identifier GX_07272_D-04

Variation -

General Information

Key features

Halogen free alternative to RG_214
Suitable for use in applications up to 6 GHz
Low smoke
Ozone, UV and weathering resistance

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Silver plated	Strand-07, 93 %, RAL 9005 - bk	2.25 mm - 0.1 mm	HUBER+SUHNER GX 07272 D-04 50 Ohm (production order number)
Dielectric	PEX (Polyethylene cross-linked)		7.25 mm
Outer conductor	Copper, Silver plated	Braid, 93%	8 mm
Outer conductor	Copper, Silver plated	Braid, 95%	8.7 mm
Jacket	RADOX	RAL 9005 - bk	10.8 mm +/- 0.1 mm	HUBER+SUHNER GX 07272 D-04 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

RG214 LSFH, 50 Ohm, 6 GHz, 105°C, ø10.8 mm, RADOX® jacket

Related products

Suitable connectors

11_UHF-0-7-18/033_-

22542745

11_UHF-0-7-18/033_-E

-

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

22658839

16_716-50-7-10/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable jack (female)

22544093

21_716-50-7-2/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22544074

11_716-50-7-2/003_-E

Single packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22544076

11_716-50-7-4/003_-E

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22651588

16_BNC-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540149

11_BNC-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22640863

11_BNC-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Right angle cable plug (male)

22541185

16_C-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable jack (female)

22543427

21_C-50-7-3/122_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541137

11_C-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541144

11_C-50-7-15/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642849

16_N-50-7-31/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22650825

16_N-50-7-26/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651441

16_N-50-7-31/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651495

16_N-50-7-36/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22658231

16_N-50-7-231/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22658292

16_N-50-7-231/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542323

24_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542327

24_N-50-7-15/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22651453

24_N-50-7-15/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542254

21_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542258

21_N-50-7-14/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22649043

21_N-50-7-21/133_UE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542117

11_N-50-7-5/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542120

11_N-50-7-6/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22642845

11_N-50-7-44/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22644465

11_N-50-7-44/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22648490

11_N-50-7-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

23038297

11_N-50-7-78/19-_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542366

25_N-50-7-8/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542370

25_N-50-7-14/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23032410

16_QN-50-7-1/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23033404

24_QN-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23033394

11_QN-50-7-1/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22651587

16_TNC-50-7-4/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22640466

11_TNC-50-7-2/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

84005182

11_TNC-50-7-10/133_NE

Single packaging

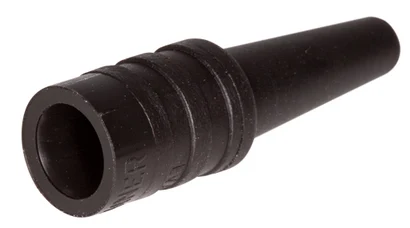

Taper sleeve 10.7 - 15.5 mm

22641163

78_Z-0-7-2

-

Product code	GX_07272_D-04
Cable family	GX: RF cables with cross-linked PE dielectrics
Available as assembly only	No
Cable group	U32

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 6 GHz
Capacitance	101 pF/m
Velocity of signal propagation	66 %
Signal delay	5.03 ns/m
Screening effectiveness	81 dB at frequency 0.1 GHz ... 6GHz
Insulation resistance	10000000 MΩ*m
Inner conductor resistance	5.8 Ω/km
Outer conductor resistance	4.43 Ω/km
Operating Voltage (at sea level)	≤ 5 kVrms
Test voltage (50 Hz/1 min)	≤ 10 kVrms

Weight	approx. 202 g/m
Static bending radius	≥ 50 mm
Repeated bending radius	110 mm
Dynamic bending radius	< 162 mm

Operation temperature	-40 °C ... 105 °C
Installation temperature	-20 °C ... 60 °C
Flame propagation standard	IEC 60332-1 EN 60332-1-2 NF C32-070 C2
Fire characteristics	free of halogenes, acc. standard IEC 60754
Smoke test	EN 61034-2
Toxicity test	NF X 70-100
