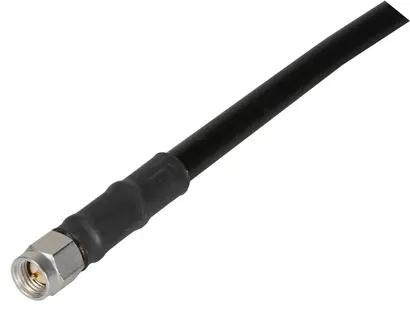

Low-loss, 50 Ohm, 6 GHz, 85°C, ø4.95 mm, PE jacket

Product number 84151727

Identifier SPUMA_195

Variation -

General Information

Key features

Halogen free cable with standard dimensions
Ozone, UV and weathering resistance
CPR qualified

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper	Wire	0.94 mm
Dielectric	SPE (Foamed Polyethylene)		2.79 mm
Outer conductor	Aluminum / PES	longitudinal Foil, 100%	2.95 mm
Outer conductor	Copper, Tin plated	Braid, 89%	3.53 mm
Jacket	PE (Polyethylene)	RAL 9005 - bk	4.95 mm +/- 0.13 mm	HUBER+SUHNER SPUMA 195 50 Ohm (production order number)

Electrical data

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 6 GHz
Capacitance	83 pF/m
Inductance	0.2 µH/m
Velocity of signal propagation	80 %
Signal delay	4.17 ns/m
Screening effectiveness	90 dB at frequency 6GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	24.9 Ω/km
Inner conductor DC resistance at 300K	16.1 Ω/km
Outer conductor resistance	16.1 Ω/km
Operating Voltage (at sea level)	≤ 0.75 kVrms
Test voltage (50 Hz/1 min)	≤ 1.5 kVrms

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Low-loss, 50 Ohm, 6 GHz, 85°C, ø4.95 mm, PE jacket

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 4 weeks (ex works)

Distributor

FARNELL with lead time

RS COMP. 100 Meter

RICHARDSON RFPD with lead time

MOUSER 37 Meter

DIGIKEY with lead time

MASTER ELECTR. with lead time

Product code	SPUMA_195
Cable family	Spuma: Flexible, low-loss RF cables
Available as assembly only	No
Cable group	X27

Weight	approx. 30 g/m
Static bending radius	≥ 12.5 mm
Repeated bending radius	50 mm

Operation temperature	-40 °C ... 85 °C
Installation temperature	-20 °C ... 60 °C
CPR class	Fca
Fire characteristics	free of halogenes, acc. standard IEC 60754

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Compliant

Related content

Products

Low-loss, 50 Ohm, 6 GHz, 85°C, ø4.95 mm, PE jacket

Specifications

Availabilities

Related products

Suitable connectors

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85069731

16_N-50-3-39/133_NH

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85070117

24_N-50-3-45/133_NH

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

85070105

21_N-50-3-22/133_NH

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85018524

11_N-50-3-64/133_NE

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

85018510

16_SMA-50-3-65/133_NE

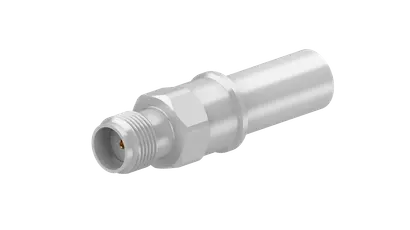

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)
