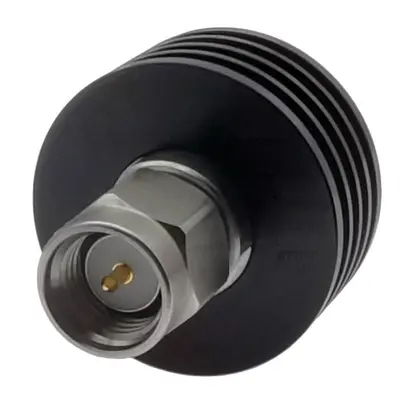

COAXIAL TERMINATION, 50 Ohm, SMA, plug (male)

Product number 85218423

Identifier 65005_SMA-50-1/19-_NE

Variation Single packaging

General Information

Key features

Material Data

Electrical data

Electrical Data (frequency related)

Electrical Data (power)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

This product is available at:

HUBER+SUHNER

Lead time on request

Distributor

MOUSER with lead time

Product code	65005_SMA-50-1/19-_N
Interfaces	SMA / plug (male)

Interface	SMA / plug (male)
Centre contact	Brass / Gold Plating
Outer contact	Stainless steel / Passivated (Plating)
Body	Aluminium / Anodized
Insulator	PTFE (Polytetrafluoroethylene)
Coupling nut	Stainless steel / Passivated (Plating)

Average power	5 W at 25 °C ambient temperature. Linearly derated to 0.5 W at 100 °C ambient temperature.
Peak power	500 W, 5 µs pulse width, 0.5 % duty cycle

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%
