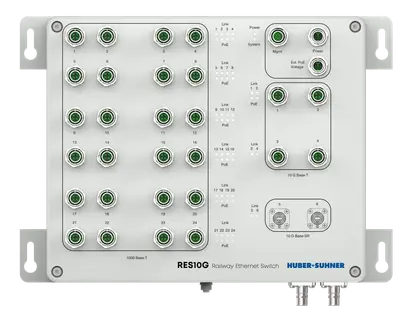

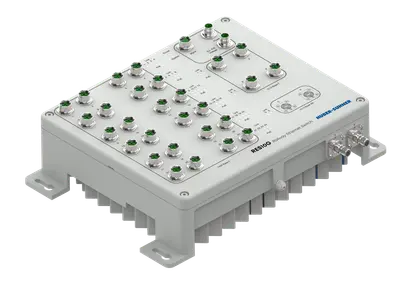

Railway Ethernet Switch, 4x10G+2x10G FO,24x1G,26xPoE++

Product number 85245148

Identifier RES10G-2804-2SR-26P

Variation -

General Information

Key features

How to use it

Ethernet Interfaces

Layer 2 Feature

Max. Switching Bandwidth	84 Gbit/s
Jumbo Frame Support	10 kB
MAC Address Table Size	16000
VLAN	IEEE802.1q Port-based VLAN
Amount of VLANs	256
Multicast	IGMPv1 IGMPv2 IGMPv3 MLD
Supported IEEE Standards	IEEE802.1AB (LLDP) IEEE802.1ax (LACP) IEEE802.1p (Quality of Service) IEEE802.1q (VLAN) IEEE802.1w (RSTP) IEEE802.1x (NAC) IEEE802.3ab (1000Base-T) IEEE802.3ae (10 Gigabit Ethernet) IEEE802.3an (10GBase-T) IEEE802.3az (Energy Efficient Ethernet) IEEE802.3bt (Power over Ethernet) IEEE802.3x (Flow Control)

Security Features

Management Interface

Network Interface	IPv4 IPv6
Command Line Interface (CLI)	Console USB SSH
Webinterface	HTTP HTTPS
Network Management Protocol	SNMP NETCONF RESTCONF
Logging	Syslog
System LEDs	System Status
Port LEDs	Link/Activity PoE
Reset / USB / RS232 Interface	M12 A-coded,12 pins (female)
Rest	Factory reset
USB Host	Firmware/configuration backup and restore
USB Device	Console access
RS232	Console access

Housing

Electrical Specification

Power Supply Connector	M12 K-coded, 5 pins (male)
Nominal Input Voltage Range	24V DC ... 110V DC
Max. Input Voltage Range	16.8V DC ... 140V DC
Max. Input Current	16 A
Power Supply Efficiency	>83% @ 24V,input voltage >90% @ 110V,input voltage
Power consumption (without PoE load)	< 50 W
PoE Voltage Connector (optionally)	M12 L-coded, 5 pins (male)
PoE Input Voltage (optionally)	54 V DC
Max. PoE Budget with external PoE supply	250 W

Environmental data

Certification

This product is available at:

HUBER+SUHNER

Lead time on request (ex works)

Product code	RES10G-2804-2SR-26P
Product family	Railway Ethernet Switch 10G

Ethernet ports in total	30
1000Base-T ports	24
1000Base-T Connector	M12 X-coded, 8-pins (female)
10GBase-T ports	4
10GBase-T Connector	M12 X-coded, 8-pins (female)
10GBase-SR ports	2
10GBase-SR Connector	Q-ODC-2 (OM3)
Power over Ethernet ports in total	26
Supported PoE standard	IEEE802.3bt Type 4 (4 pairs)
Supported PoE class	1 … 8, (up to 90W)
Total PoE power budget	120 W

Secure Firmware Update	Secure Fimware Update
Remote Admin IP Filter	Only whitelisted IPs have access to management
Access Control List (ACL)	Layer 2 Layer 3
Bandwidth limitation	Ingress-/Egress-Rate limiting
