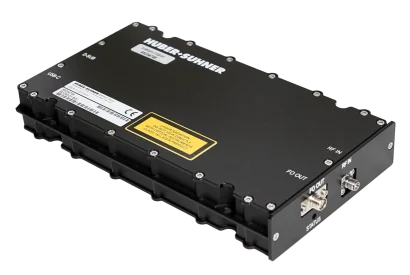

Transmitter, 22 GHz, Flange mount, 1 RF IN, 1 FO OUT
Product number 85254749
Identifier F-RFoF1-1T22-01
Variation Missing product short name
General Information
- Wide bandwidth from 0.1 up to 22 GHz
- Stable fixed gain and RF performance over the full operating temperature range
- 1550 nm wavelength
- Local LED status indication
- SUB-D (RS 485) and USB-C interface, access via DMT tool (MS Windows)
- Laser conforms to class 1 emission level per CDRH and IEC-835 (EN 60825 standards)
- -20°C to +65°C operating case temperature range
- Small form factor for flange mounting
- High spurious-free dynamic range (SFDR)
Key features
Specifications
