800G OSFP112 2x400G PAM4 DR4

Product number 85244724

Identifier COS-201A03

Variation 500m, 1310nm, 2x MPO-12, Singlemode, Closed top

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

OSFP112-800G-DR8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

This product is available at:

HUBER+SUHNER

Lead time on request

Type	800G OSFP112 2x400G PAM4 DR4
Media Reach Type	500m, 1310nm, Singlemode fiber
Protocol	800G Ethernet, 2x 400G Ethernet, Infiniband

Form factor	OSFP112 (Closed top)

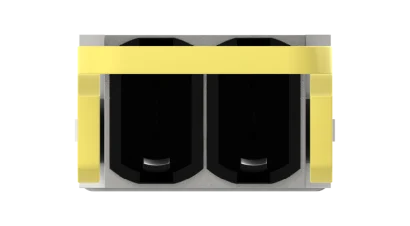

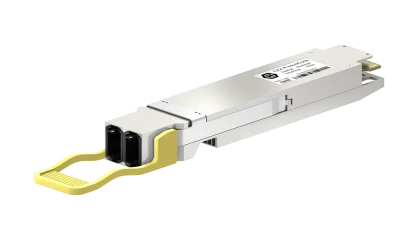

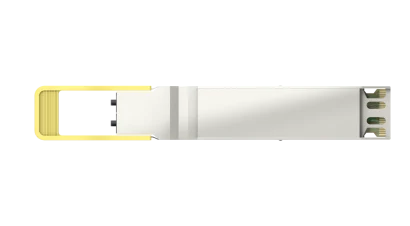

Product image	Actual product may differ from the images shown. Colours, design, and details can vary.
Protocol	800G Ethernet, 2x 400G Ethernet, Infiniband
Data rate standards	800GBASE-DR8 2x 400GBASE-DR4
Media type	Singlemode
Connector	2x MTP/MPO-8/12 (APC)
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 4545 mA
Power consumption	< 15 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %

Laser Type	Silicon photonics
Operating Wavelength Range	1304.5 nm ... 1317.5nm
Grid	None
Average launch power per lane	-2.9 dBm ... 4 dBm
Outer Optical Modulation Amplitude (OMA)	-0.8 dBm ... 4.2 dBm
Extinction Ratio	> 3.5 dB
Side Mode Suppression	> 30 dB
Supported Data rate	850 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 3.4 dB
OMA - TDECQ	-2.2

Receiver Type	PIN
Operating Wavelength Range	1304.5 nm ... 1317.5nm
Receiver Sensitivity (OMA)	< -4.4 dBm
Stressed receiver sensitivity (OMA)	< -1.9 dBm
Bit Error Rate at Receiver	2.4E-4
Maximum Optical Input Power per Lane (Overload)	4 dBm
Receiver LOS De-Assert	< -6.9 dBm
Receiver LOS Assert	> -15 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	850 Gbps
Average receive power per lane	-5.9 dBm ... 4 dBm
Maximum Receiver Power (Damage Threshold)	> 5 dBm
