800G OSFP112 2x400G PAM4 SR4

Product number 85255692

Identifier COM-201A02

Variation 50m, 850nm, 2x MPO-12, Multimode, Finned top

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

OSFP112-800G-SR8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

This product is available at:

HUBER+SUHNER

Lead time on request

Type	800G OSFP112 2x400G PAM4 SR4
Media Reach Type	50m, 850nm, OM4 multimode fiber
Protocol	800G Ethernet, 2x 400G Ethernet, Infiniband

Form factor	OSFP112 (Finned top)

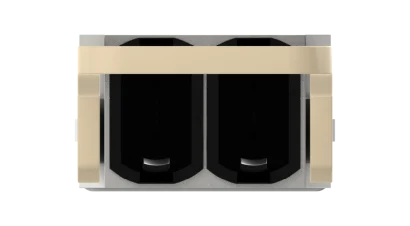

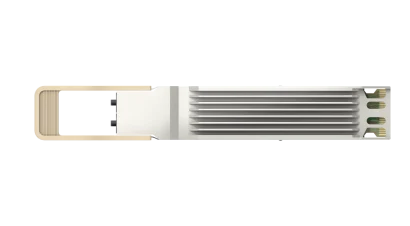

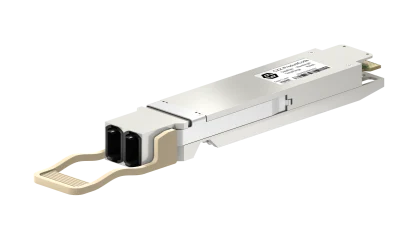

Product image	Actual product may differ from the images shown. Colours, design, and details can vary.
Protocol	800G Ethernet, 2x 400G Ethernet, Infiniband
Data rate standards	800GBASE-SR8 2x 400GBASE-SR4
Media type	Multimode
Connector	2x MTP/MPO-8/12 (APC)
Modulation Format	PAM4
Built-in FEC	No
Management Interface	CMIS 5.0
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 4.545 mA
Power consumption	< 15 W
Digital Diagnostic Management (DDM)	Yes

Laser Type	VCSEL
Operating Wavelength Range	844 nm ... 863nm
Grid	None
Average launch power per lane	-1 dBm ... 4 dBm
Outer Optical Modulation Amplitude (OMA)	-2.1 dBm ... 3.5 dBm
Extinction Ratio	> 2.5 dB
Supported Data rate	850 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 4.4 dB

Receiver Type	PIN
Operating Wavelength Range	842 nm ... 864nm
Receiver Sensitivity (OMA)	< -4.6 dBm
Stressed receiver sensitivity (OMA)	< -2 dBm
Bit Error Rate at Receiver	2.4E-4
Receiver LOS De-Assert	< -8 dBm
Receiver LOS Assert	> -17 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	850 Gbps
Average receive power per lane	-6.3 dBm ... 4 dBm
Maximum Receiver Power (Damage Threshold)	> 5 dBm
