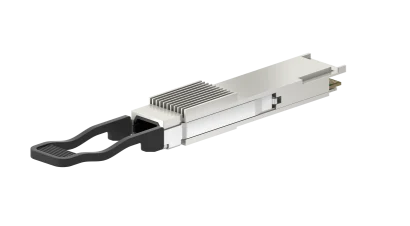

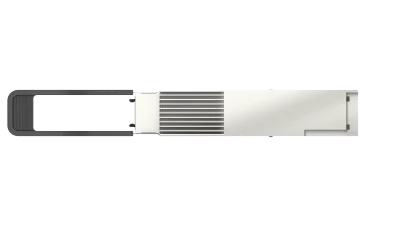

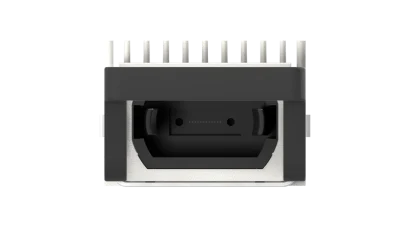

400G QSFP112 PAM4 SR4

Product number 85255697

Identifier CQM-102A02

Variation 50m, 850nm, MPO-12, Multimode

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP112-400G-SR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

Type	400G QSFP112 PAM4 SR4
Protocol	400G Ethernet, Infiniband

Form factor	QSFP112
Protocol	400G Ethernet, Infiniband
Data rate standards	400GBASE-SR4
Media type	Multimode
Connector	MTP/MPO-8/12 (APC)
Modulation Format	PAM4
Built-in FEC	No
Management Interface	CMIS 5.0
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 2727 mA
Power consumption	< 9 W
Digital Diagnostic Management (DDM)	Yes

Laser Type	VCSEL
Operating Wavelength Range	842 nm ... 948nm
Grid	None
Average launch power per lane	-4.5 dBm ... 4 dBm
Extinction Ratio	> 2.5 dB
Supported Data rate	425 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 4.4 dB
OMA - TDECQ	> -2.6 dBm - TDEQC (TDEQC < 1.8 dB) > -4.4 dBm (1.8 dB < TDECQ < 4.4 dB)

Receiver Type	PIN
Receiver Sensitivity	-4.4 dBm (OMA outer, each lane, TECQ < 1.8 dB) -6.2 dBm + TECQ (OMA outer, each lane, 1.8 dB < TECQ < 4.4 dB)
Operating Wavelength Range	842 nm ... 948nm
Bit Error Rate at Receiver	2.4E-4
Receiver LOS De-Assert	< -8 dBm
Receiver LOS Assert	> -17 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	425 Gbps
Average receive power per lane	-6.3 dBm ... 4 dBm
Maximum Receiver Power (Damage Threshold)	> 5 dBm
