800G QSFP112-DD 2x400G PAM4 DR4

Product number 85280103

Identifier CQS-204A02

Variation 500m, 1310nm, 2x MPO-12, Singlemode

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-2xDR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

This product is available at:

HUBER+SUHNER

Lead time on request

Type	800G QSFP112-DD 2x400G PAM4 DR4
Media Reach Type	500m, 1310nm, Singlemode fiber
Protocol	800G Ethernet, 2x 400G Ethernet, Infiniband
Special features	Dual Transceiver

Form factor	QSFP112-DD

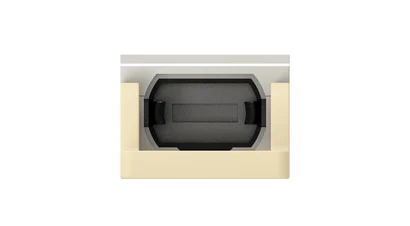

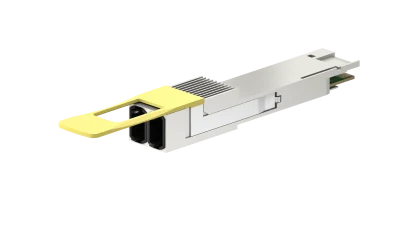

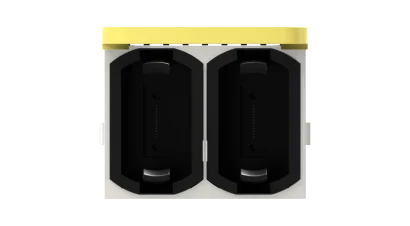

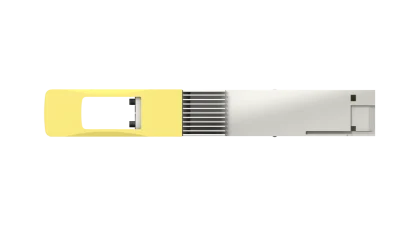

Product image	Actual product may differ from the images shown. Colours, design, and details can vary.
Protocol	800G Ethernet, 2x 400G Ethernet, Infiniband
Media type	Singlemode
Connector	2x MTP/MPO-8/12 (APC)
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply Current	< 5150 mA
Power consumption	< 17 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %

Laser Type	EML
Grid	None
Average launch power per lane	-2.9 dBm ... 4 dBm
Outer Optical Modulation Amplitude (OMA)	-0.8 dBm ... 4.2 dBm
Total optical output power	< 13 dBm
Extinction Ratio	> 3.5 dB
Side Mode Suppression	> 30 dB
Supported Data rate	850 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 3.4 dB

Receiver Type	PIN
Operating channels	1311.00nm (1304.5 to 1317.5nm)
Receiver Overload	> 4 dBm
Receiver Sensitivity (OMA)	< -3.9 dBm
Bit Error Rate at Receiver	2.4E-4
Receiver LOS De-Assert	< 6.9 dBm
Receiver LOS Assert	> -15 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	850 Gbps
Maximum Receiver Power (Damage Threshold)	> 5 dBm
