100G QSFP28 CWDM4

Product number 85216099

Identifier CQS-901A05

Variation 2km, 1310nm, LC/PC duplex, Singlemode

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28-CWDM4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

This product is available at:

HUBER+SUHNER

Lead time on request

Form factor	QSFP28

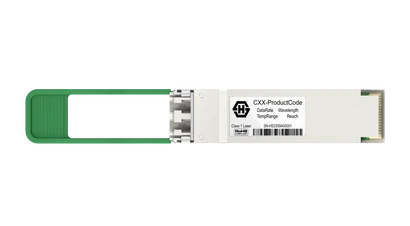

Product image	Actual product may differ from the images shown. Colours, design, and details can vary.
Protocol	100G Ethernet, Infiniband
Data rate standards	100GBASE-CWDM4
Media type	Singlemode
Connector	LC/PC duplex
Modulation Format	NRZ
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 1060 mA
Power consumption	< 3.5 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. supply voltage range	-0.3 V ... 4 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	DML
Operating channels	1271.00nm (1264.5 to 1277.5nm) 1291.00nm (1284.5 to 1297.5nm) 1311.00nm (1304.5 to 1317.5nm) 1331.00nm (1324.5 to 1337.5nm)
Grid	None
Average launch power per lane	-6.5 dBm ... 2.5 dBm
Outer Optical Modulation Amplitude (OMA)	-5 dBm ... 2.5 dBm
Total optical output power	< 8.5 dBm
Extinction Ratio	> 3.5 dB
Side Mode Suppression	> -30 dB
Supported Data rate	103.125 Gbps

Receiver Type	PIN
Operating channels	1271.00nm (1264.5 to 1277.5nm) 1291.00nm (1284.5 to 1297.5nm) 1311.00nm (1304.5 to 1317.5nm) 1331.00nm (1324.5 to 1337.5nm)
Receiver Overload	> 2.5 dBm
Receiver Sensitivity	< -10 dBm
Receiver Sensitivity (OMA)	< -9.5 dBm
Bit Error Rate at Receiver	5E-5
Maximum Optical Input Power per Lane (Overload)	3.5 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	103.125 Gbps
