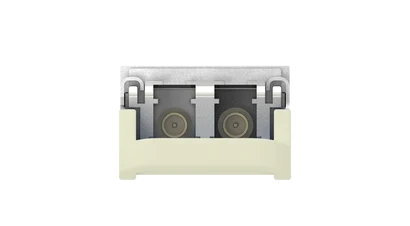

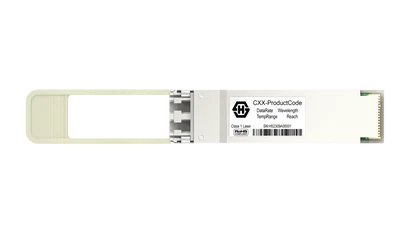

100 Gb/s QSFP28 Coherent Tunable DWDM ZR

Product number 85257907

Identifier CQS-943A22

Variation 120km*, C-band, LC/PC duplex, Singlemode, SFF-8636

Wavelength

1550nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28.100G-DWDM-ZR

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

Form factor	QSFP28
Protocol	100G Ethernet
Media type	Singlemode
Connector	LC/PC duplex
Modulation Format	DQPSK
Built-in FEC	Staircase FEC
Management Interface	SFF-8636
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.135 V ... 3.465 V
Power consumption	< 5 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	Coherent
Operating channels	Tunable from H13 to H60 / C14 to C61
Grid	DWDM 50GHz C/H-band
Average launch power per lane	-8 dBm ... -4 dBm
Supported Data rate	103.125 Gbps

Receiver Sensitivity	< -30 dBm (100G DQPSK SC, OSNR > 35 dB / 0.1nm) < -24 dBm (100G DQPSK RS, OSNR > 35 dB / 0.1nm)
Input Power range-DWDM-amplified	-18 ... 1 dBm (Full Rx OSNR tolerance, OSNR > 16.5 dB/0.1nm (SC), OSNR > 21.5 dB/0.1nm (RS)) -22 ... 3 dBm (OSNR penalty < 1 dB relative to OSNR limit)
Receiver Overload	> 1 dBm
Receiver Sensitivity	< -30 dBm
Bit Error Rate at Receiver	1E-12
Supported Data rate	103.125 Gbps
Maximum Receiver Power (Damage Threshold)	> 3 dBm

Type	100 Gb/s QSFP28 Coherent Tunable DWDM ZR
Media Reach Type	80km, C-band 100GHz, Singlemode fiber
Protocol	100G Ethernet
