High-flexible, Low-loss, 50 Ohm, 6 GHz, 85°C, ø15.00 mm, TPU jacket

Product number 85240547

Identifier SPUMA_600-RS-FR

Variation -

General Information

Key features

Halogen free cable with standard dimensions
Low smoke
Ozone, UV and weathering resistance
RS - Rotary Swaged centre conductor

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Aluminium, Copper cladded	Strand, Rotary swaged	4.44 mm +/- 0.03 mm
Dielectric	SPE (Foamed Polyethylene)		11.54 mm +/- 0.16 mm
Outer conductor	Aluminum / PES	longitudinal Foil, 100%	11.72 mm +/- 0.17 mm
Outer conductor	Copper, Tin plated	Braid, 90.3%	12.53 mm +/- 0.18 mm
	TPU (Urethane TPE)	RAL 9005 - bk	15 mm +/- 0.24 mm	HUBER+SUHNER SPUMA 600-RS-FR 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

High-flexible, Low-loss, 50 Ohm, 6 GHz, 85°C, ø15.00 mm, TPU jacket

Related products

Suitable connectors

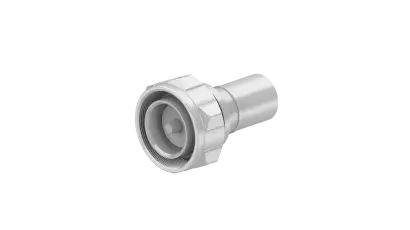

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

85018507

11_716-50-12-8/033_-Y

Tray packaging

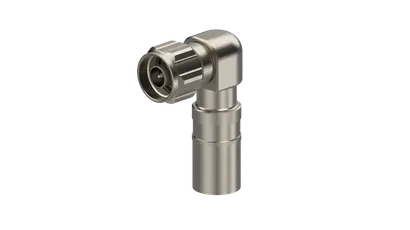

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85018526

16_N-50-12-12/033_-E

Single packaging

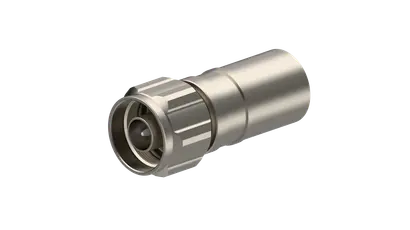

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)
