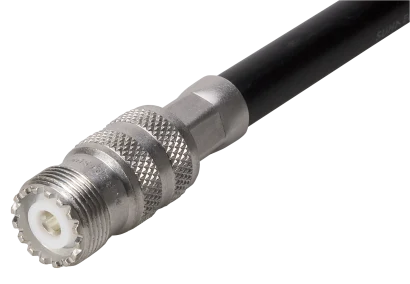

COAXIAL CONNECTOR, UHF, X Ohm, Straight cable jack (female)

Product number 22542775

Identifier 21_UHF-0-7-4/033_-E

Variation Single packaging

General Information

Key features

Mateable with 4 mm banana plugs
Applicable in frequencies up to 200 MHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

Product code	21_UHF-0-7-4/033_
Interface type	UHF
Available as assembly only	No
Cable group	U42 U29

Interface type	UHF
Gender	jack
Standard	IEC 60169-12

Centre contact	Brass / Silver Plating
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Crimp ferrule	Copper / SUCOPLATE (R) Plating

Weight	0.0324 kg
Mating cycles	500
Cable entry centre contact	crimped
Cable entry outer contact	crimped

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

COAXIAL CONNECTOR, UHF, X Ohm, Straight cable jack (female)

Specifications

Related products

Suitable cables

RG213, 50 Ohm, 1 GHz, 85°C, ø10.3 mm, PVC jacket

22510052

RG_213_/U

RG213 LSFH, 50 Ohm, 2 GHz, 105°C, ø10.3 mm, RADOX® jacket

22510708

GX_07272

RG213 LSFH, 50 Ohm, 2 GHz, 105°C, ø10.6 mm, RADOX® jacket

85023730

RADOX_RF_213

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	U42 - 7 mm / 50 Ohm U29 - 7 mm / 50 Ohm
Suitable cables	RG_213_/U
Additional cables	G_07272 RADOX_RF_213
