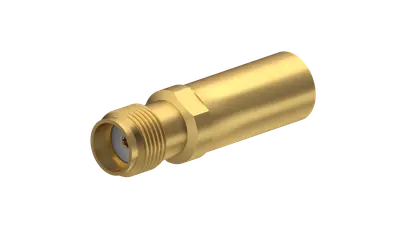

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

Product number 22640081

Identifier 21_SMA-50-3-5/111_NE

Variation Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

Product code	21_SMA-50-3-5/111_N
Interface type	SMA
Available as assembly only	No
Cable group	U7

Interface type	SMA
Gender	jack
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Crimp ferrule	Copper / Gold Plating (without Nickel underplating)

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0029 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

Specifications

Related products

Suitable cables

50 Ohm, 1 GHz, 85°C, ø4.95 mm, LSFH jacket

22512108

G_03262-01

50 Ohm, 3 GHz, 105°C, ø4.95 mm, RADOX® jacket

22510959

GX_03272

RG58, 50 Ohm, 1 GHz, 85°C, ø4.95 mm, PVC jacket

22510015

RG_58_C/U

RG58, 50 Ohm, 1 GHz, 85°C, ø4.95 mm, PVC jacket

23024284

RG_58_C/U-62

RG58 alternative, 50 Ohm, 1 GHz, 85°C, ø4.95 mm, PUR jacket

22610095

G_03212-01

RG58 alternative, 50 Ohm, 1 GHz, 85°C, ø5 mm, PVC jacket

22510128

G_03232

RG58 LSFH, 50 Ohm, 2 GHz, 105°C, ø4.95 mm, RADOX® jacket

85070085

GX_03272-AM

RG58 LSFH, 50 Ohm, 3 GHz, 105°C, ø4.95 mm, RADOX® jacket

22512309

GX_03272-04

RG58 LSFH, 50 Ohm, 3 GHz, 105°C, ø5.1 mm, RADOX® jacket

85023726

RADOX_RF_58

RG58 LSFH, 50 Ohm, 3 GHz, 105°C, ø5.1 mm, RADOX® jacket

85142906

RADOX_RF_58-01

RG58 LSFH type, 50 Ohm, 1 GHz, 85°C, ø4.95 mm, LSFH jacket

85086965

ENVIROFLEX_B58

RG303, 50 Ohm, 1 GHz, 200°C, ø4.3 mm, FEP jacket

22510078

RG_303_/U

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead
