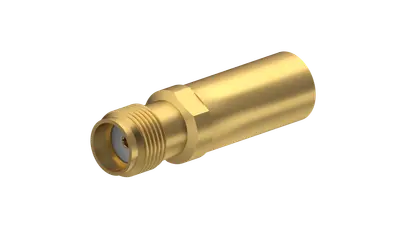

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

Product number 22640082

Identifier 21_SMA-50-3-6/111_NE

Variation Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

Related products

Suitable cables

50 Ohm, 6 GHz, 85°C, ø5.4 mm, LSFH jacket

22511812

G_03262_D

-

RADOX OFL - RG142 LSFH, 50 Ohm, 8 GHz, 105°C, ø5.34 mm, RADOX® jacket

85182100

RADOX OFL RF 142

-

RG142, 50 Ohm, 6 GHz, 200°C, ø4.95 mm, FEP jacket

22510037

RG_142_B/U

-

RG142 alternative, 50 Ohm, 6GHz, 200°C, ø4.95 mm, FEP jacket

22511236

K_03252_D-03

-

RG142 LSFH, 50 Ohm, 6 GHz, 105°C, ø5 mm, RADOX® jacket

22512168

ENVIROFLEX_142

-

RG142 LSFH, 50 Ohm, 8 GHz, 105°C, ø5.34 mm, RADOX® jacket

85023684

RADOX_RF_142

-

RG142 LSFH type, 50 Ohm, 6 GHz, 85°C, ø5 mm, LSFH jacket

85087105

ENVIROFLEX_B142

-

RG223, 50Ohm, 6 GHz, 85°C, ø5.3 mm, PVC jacket

22610106

RG_223_/U-02

-

RG223, 50 Ohm, 6 GHz, 85°C, ø5.4 mm, PVC jacket

22510072

RG_223_/U

-

RG223 alternative, 50 Ohm, 6 GHz, 85°C, ø5.4 mm, PUR jacket

22512305

G_03212_D-01

-

RG223 alternative, 50 Ohm, 6 GHz, 85°C, ø5.35 mm, PVC jacket

22510134

G_03232_D-01

-

RG223 LSFH, 50 Ohm, 6 GHz, 85°C, ø5.4 mm, LSFH jacket

22511782

G_03262_D-01

-

RG223 LSFH, 50 Ohm, 6 GHz, 105°C, ø5.4 mm, RADOX® jacket

22511592

GX_03272_D-06

-

RG223 LSFH type, 50 Ohm, 6 GHz, 85°C, ø5.4 mm, LSFH jacket

85087022

ENVIROFLEX_B223

-

RG400, 50 Ohm, 6 GHz, 200°C, ø4.95 mm, FEP jacket

22510080

RG_400_/U

-

RG400 LSFH, 50 Ohm, 6 GHz, 105°C, ø4.97 mm, RADOX® jacket

84008746

ENVIROFLEX_400-01

-

RG400 LSFH, 50 Ohm, 6 GHz, 105°C, ø5.34 mm, RADOX® jacket

85023720

RADOX_RF_400

-

RG400 LSFH, 50 Ohm, 6 GHz, 105°C, ø5 mm, RADOX® jacket

22512280

ENVIROFLEX_400

-

RG400 LSFH type, 50 Ohm, 6 GHz, 85°C, ø5 mm, LSFH jacket

85087104

ENVIROFLEX_B400

-

Product code	21_SMA-50-3-6/111_N
Interface type	SMA
Available as assembly only	No
Cable group	U9 U41 U11

Interface type	SMA
Gender	jack
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Crimp ferrule	Copper / Gold Plating (without Nickel underplating)

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0025 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	U9 - 3 mm / 50 Ohm U41 - 3 mm / 50 Ohm U11 - 3 mm / 50 Ohm
Suitable cables	RG_223_/U
Additional cables	RG_400_/U RADOX_RF_142
