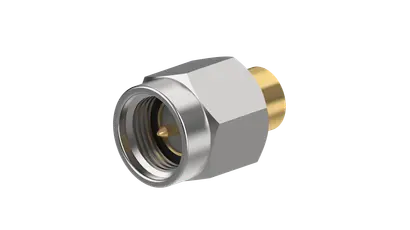

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

Product number 22641643

Identifier 11_SMA-50-3-65/119_NE

Variation Single packaging

Choose a variant

Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0 GHz ... 6 GHz	32.25 dB	1.05
6 GHz ... 11 GHz	28.29 dB	1.08
11 GHz ... 18 GHz	20.82 dB	1.2

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

Related products

Suitable cables

Flexible (RG402) 50 Ohm, 33 GHz, 165°C, ø4.14 mm, FEP jacket

22511964

MULTIFLEX_141

-

Hand formable (RG402) 50Ohm, 6GHz, 165°C, ø4.1mm, FEP jacket

85031886

SUCOFORM_141_CU_CMP

-

Hand formable (RG402) 50Ohm, 33GHz, 85°C, ø4.6mm, PE jacket

22511632

SUCOFORM_141_PE

-

Hand formable (RG402) 50Ohm, 33GHz, 85°C, ø4.6 mm, PE jacket

22511639

SUCOFORM_141_CU_PE

-

Hand formable (RG402) 50Ohm 33GHz, 85°C, ø4.47mm LSFH jacket

84003502

SUCOFORM_141_CU_LSFH-01

-

Hand formable (RG402) 50Ohm, 33GHz, 165°C, ø3.58mm no jacket

22511635

SUCOFORM_141_CU

-

Hand formable (RG402) 50Ohm, 33GHz, 165°C, ø3.58mm no jacket

22511925

SUCOFORM_141

-

Hand formable (RG402) 50Ohm, 33GHz, 165°C, ø4.1mm FEP jacket

22511944

SUCOFORM_141_FEP

-

Hand formable (RG402) 50Ohm, 33GHz, 165°C, ø4.1mm FEP jacket

22512256

SUCOFORM_141_CU_FEP

-

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Aluminium/Tin plated, M17

22810015

SR_141_AL_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Aluminium/Tin plated, M17

22820015

SR_141_AL_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Aluminium/Tin plated, M17

22830015

SR_141_AL_TP_M17_3M

3 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper

22830046

SR_141_CU_3M

3 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper, M17

22810041

SR_141_M17_COIL

Coil

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper, M17

22820041

SR_141_M17_2M

2 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper, M17

22830041

SR_141_M17_3M

3 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper/Tin plated

22810050

SR_141_CU_TP_COIL

Coil

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper/Tin plated

22820050

SR_141_CU_TP_2M

2 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper/Tin plated

22830050

SR_141_CU_TP_3M

3 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper/Tin plated, M17

22810043

SR_141_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper/Tin plated, M17

22820043

SR_141_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, Copper/Tin plated, M17

22830043

SR_141_TP_M17_3M

3 meter

Product code	11_SMA-50-3-65/119_N
Interface type	SMA
Available as assembly only	No
Cable group	Y5 Y17 Y12

Interface type	SMA
Gender	plug
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Coupling nut	Stainless steel
Gasket	VMQ (Silicone rubber)

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0025 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	soldered

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	Y5 - 3 mm / 50 Ohm Y17 - 3 mm / 50 Ohm Y12 - 3 mm / 50 Ohm
Suitable cables	SUCOFORM_141
