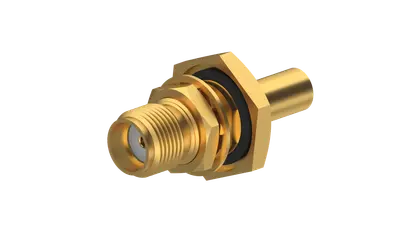

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

Product number 22651719

Identifier 24_SMA-50-2-13/111_NH

Variation Bulk packaging

Choose a variant

Bulk packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Centre contact	Copper Beryllium / Brass / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Gasket	VMQ (Silicone rubber)
Fastening nut	Brass / Gold Plating (Nickel underplated)
Washer	Bronze / Gold Plating (Nickel underplated)
Crimp ferrule	Copper / Gold Plating (without Nickel underplating)

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

RICHARDSON RFPD with lead time

MOUSER 28 Piece

DIGIKEY with lead time

MASTER ELECTR. with lead time

Product code	24_SMA-50-2-13/111_N
Interface type	SMA
Available as assembly only	No
Cable group	U4

Interface type	SMA
Gender	jack
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0043 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	U4 - 2 mm / 50 Ohm
Suitable cables	K_02252_D
Suitable cables	G_02232_D
