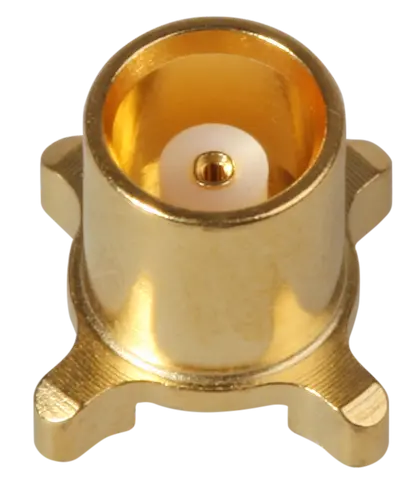

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight PCB jack (female)

Product number 22658306

Identifier 82_MCX-S50-0-29/111_NM

Variation Tape and Reel packaging

Choose a variant

Tape and Reel packaging

General Information

Key features

Small size
Easy to connect and disconnect
Wide range of board connectors and cable connectors available

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight PCB jack (female)

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 12 weeks (ex works)

Distributor

FARNELL 661 Piece

RS COMP. 440 Piece

MOUSER with lead time

RS AMERICAS with lead time

DIGIKEY 652 Piece

MASTER ELECTR. 410 Piece

Product code	82_MCX-S50-0-29/111_N
Interface type	MCX
Connector type	Straight PCB jack
Board mounting type	surface mount

Interface type	MCX
Gender	jack
Standard	IEC 60169-36_CECC 22220

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Brass / SUCOPRO Plating
Body	Brass / SUCOPRO Plating
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	6 GHz

Weight	0.0004 kg
Mating cycles	500
Board mounting type	surface mount
Number of printlegs	4
Height above PCB HA	6 mm
Height of stand off HS	0.8 mm

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight PCB jack (female)

Specifications

Availabilities

Related products

Accessories

Insulating washer: 77_Z-0-0-8

22543204

77_Z-0-0-8/---_-H

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c
