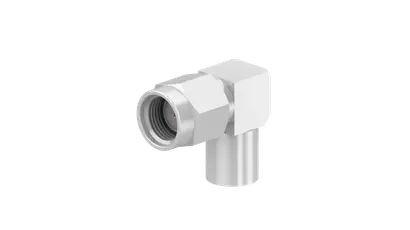

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

Product number 84117815

Identifier 16_SMA-R50-3-16/133_NP

Variation Bulk packaging

Choose a variant

Bulk packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

RICHARDSON RFPD with lead time

MOUSER with lead time

DIGIKEY with lead time

MASTER ELECTR. with lead time

Product code	16_SMA-R50-3-16/133_N
Interface type	SMA-reverse
Available as assembly only	No
Cable group	U9 U41 U11

Interface type	SMA-reverse
Gender	plug
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / SUCOPRO Plating
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PTFE (Polytetrafluoroethylene)
Coupling nut	Brass / SUCOPLATE (R) Plating
Gasket	VMQ (Silicone rubber)
Crimp ferrule	Copper / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0047 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	U9 - 3 mm / 50 Ohm U41 - 3 mm / 50 Ohm U11 - 3 mm / 50 Ohm
Suitable cables	RG_400_/U
Suitable cables	ENVIROFLEX_400
Additional cables	RADOX_RF_400
