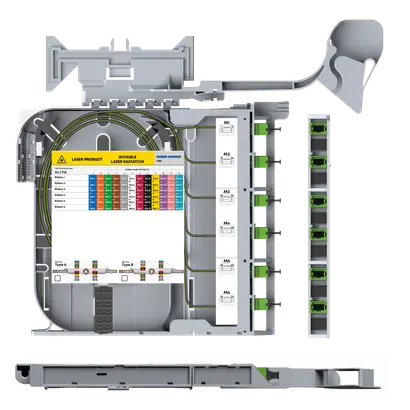

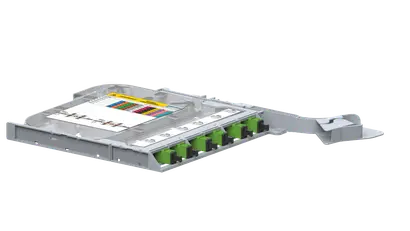

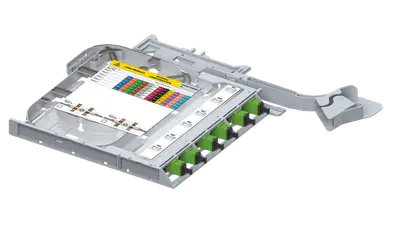

LISA ribbon splice cassette LEFT, 72x fiber, 6xMTP12 male APC, G.657.A2, TIA, HS incl

Name: LISA ribbon splice cassette LEFT, 72x fiber, 6xMTP12 male APC, G.657.A2, TIA, HS incl
SKU: 85241952

Product number 85241952

Identifier LC-L-SK-06-MTAM-00-0000-A2-04-R1B0

Variation: -

Key features

Cassette accessed from the front with side facing adapters with pull-out and hinge down function for maintenance
Pull-out service position for immediate access to adapters
Patch cords supported and guided into management system
The cassette tray is optimized for mass-fusion splicing

How to use it

General data

Optical data

Mechanical data

Technical data

Product family	LISA
Module type	Ribbon Splicing Module
Fiber quantity	72 pcs
Polarity	TIA
Colour coding	TIA
Drawer tilt	90 °
Pigtails	OptiRibbon
Mounting type	Front mounting
Adapter key alignment	Key up - Key down
Module material	Plastic
Module colour	Window grey (RAL 7040)
Number of adapter front	6 pcs
Adapter family front	MTP ®
Polishing adapter front	SM APC
Housing colour adapter front	Green
Gender of adapter front	pinned
Fiber type	Singlemode
Fiber	E9/125A2
Insertion loss max.	≤ 0.35 dB
Insertion loss typical	≤ 0.15 dB
Return loss	≥ 60 dB
Flammability rating	UL 94 V-2
Free of halogene	Yes
Operation temperature	-40 °C ... 70 °C

Environmental data
