04 CWDM Dual Fiber Mux/DeMux

Product number 85191883

Identifier X10010-2CM04-4700-3XN1M-55

Variation Channels: 1471, 1491, 1591, 1611

Choose a variant

Channels: 1471, 1491, 1591, 1611

General Information

Key features

How to use it

This product is available at:

HUBER+SUHNER

Lead time on request

Form factor	M Module

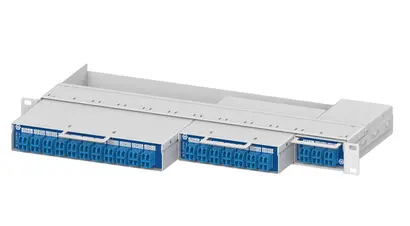

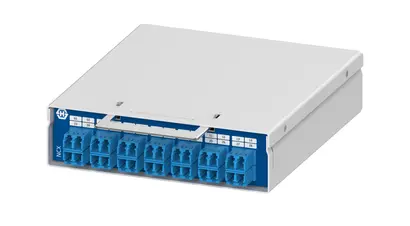

Product image	Actual product may differ from the images shown. Colours, design, and details can vary.
Width	144.3 mm
Depth	161 mm
Height	39.25 mm
Weight	< 1.2 kg
Operating Temperature	-40 °C ... 70 °C
Storage temperature	-40 °C ... 85 °C

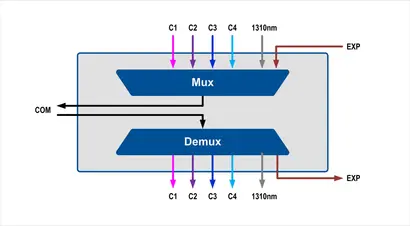

Number of channels	2x (4+1+1)
Grid	CWDM WWDM
Operating channels	According to CWDM ITU-T G.694.2 standard. See ordering information
Upgrade port(s)	1310: 1260 to 1360 nm EXP: 1504.5 to 1577.5 nm
Channel spacing (nm)	20 nm
Channel width	CWDM channels > 13nm
Insertion loss CWDM	< 2.4 dB
Insertion Loss Express port	< 1.3 dB
Insertion Loss 1310 port	< 1 dB
Insertion loss remarks	Insertion loss at room operating temperature. Insertion loss +0.2dB over full temperature range.
Link loss CWDM	< 4.1 dB
Link loss WWDM port	Link loss at room operating temperature.
Link Loss Add/Drop	> 40 dB (CWDM)
Link Loss In to Out	> 28 dB (Express@CWDM) > 15 dB (Mux), > 45 dB (Demux) (CWDM@1310 Port) > 15 dB (Mux), > 45 dB (Demux) (1310 Port@CWDM) > 15 dB (Mux), > 45 dB (Demux) (1310 Port@Express)
Link loss remark	Link loss at room operating temperature.
Isolation adjacent channels	> 30 dB (CWDM)
Isolation no adjacent channels	> 40 dB (CWDM)
Isolation upgrade port	> 28 dB (Express@CWDM) > 15 dB (Mux), > 45 dB (Demux) (CWDM@1310 Port) > 15 dB (Mux), > 45 dB (Demux) (1310 Port@CWDM) > 15 dB (Mux), > 45 dB (Demux) (1310 Port@Express)
Isolation spectral range	1260 nm ... 1620 nm
Isolation remark	Far-end crosstalk (demux) Near-end crosstalk (mux)
Optical return loss	≥ 45 dB
Directivity	> 50 dB
Polarization dependent loss	< 0.25 dB
