50 Ohm, 1 GHz, 85°C, ø4.95 mm, LSFH jacket

Product number 22512108

Identifier G_03262-01

Variation -

General Information

Key features

Custom version of standard RG cable
Low smoke

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Tin plated	Strand-19	0.9 mm - 0.15 mm
Dielectric	PE (Polyethylene)		2.95 mm
Outer conductor	Copper, Tin plated	Braid, 96%	3.6 mm
Jacket	LSFH (modified polyethylene)	RAL 9005 - bk	4.95 mm +/- 0.15 mm	HUBER+SUHNER G 03262-01 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

50 Ohm, 1 GHz, 85°C, ø4.95 mm, LSFH jacket

Related products

Suitable connectors

Cable terminators for flexible cables

23013153

83_CT-0-3-1/-23_-E

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540185

16_BNC-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540198

16_BNC-50-3-13/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22644365

16_BNC-50-3-5/133_UH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84013233

16_BNC-50-3-25/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84057675

16_BNC-50-3-27/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540378

24_BNC-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540385

24_BNC-50-3-5/133_NE

-

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84057964

24_BNC-50-3-37/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22540263

21_BNC-50-3-12/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22646504

21_BNC-50-3-26/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

84057699

21_BNC-50-3-27/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540045

11_BNC-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540052

11_BNC-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540054

11_BNC-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540077

11_BNC-50-3-25/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641268

11_BNC-50-3-4/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22644457

11_BNC-50-3-50/CER_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22658737

11_BNC-50-3-72/122_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057578

11_BNC-50-3-87/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057579

11_BNC-50-3-87/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

84057974

25_BNC-50-3-39/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight bulkhead cable jack (female)

22644448

24_C-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541103

11_C-50-3-7/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight bulkhead cable jack (female)

22541784

24_H4-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable jack (female)

22541756

21_H4-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22541732

11_H4-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22541737

11_H4-50-3-3/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642846

16_N-50-3-26/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651610

16_N-50-3-103/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542295

24_N-50-3-10/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542296

24_N-50-3-11/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542229

21_N-50-3-7/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22543504

21_N-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

85125921

21_N-50-3-5/133_NH

Missing product short name

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542069

11_N-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22642842

11_N-50-3-28/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542342

25_N-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542346

25_N-50-3-6/133_NE

Single packaging

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Right angle cable plug (male)

84023627

16_QLA-01-3-1/122_NE

Single packaging

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

22641313

11_QLA-01-3-1/122_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017691

16_QMA-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017692

16_QMA-50-3-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017795

24_QMA-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017702

11_QMA-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017703

11_QMA-50-3-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23033398

16_QN-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23033402

24_QN-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23033392

11_QN-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight bulkhead cable jack (female)

22641281

24_SHV-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable jack (female)

22541998

21_SHV-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541987

11_SHV-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541989

11_SHV-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541990

11_SHV-50-3-10/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight panel cable jack (female), flange mount

22542014

25_SHV-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651584

16_SMA-50-3-145/133_NE

-

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651585

16_SMA-50-3-105/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651800

16_SMA-50-3-105/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130712

16_SMA-50-3-15/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22640081

21_SMA-50-3-5/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22640048

11_SMA-50-3-5/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22640050

11_SMA-50-3-7/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22641371

11_SMA-50-3-55/199_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22642239

11_SMA-50-3-45/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22644684

11_SMA-50-3-5/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22645987

11_SMA-50-3-45/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84117823

11_SMA-50-3-237/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130703

11_SMA-50-3-237/133_NE

Single packaging

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable jack (female)

84032514

21_SMA-R50-3-51/133_NE

Single packaging

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

22658747

11_SMA-R50-3-48/133_NE

Single packaging

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

85101079

11_SMA-R50-3-48/133_NH

Missing product short name

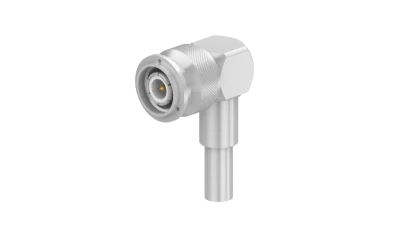

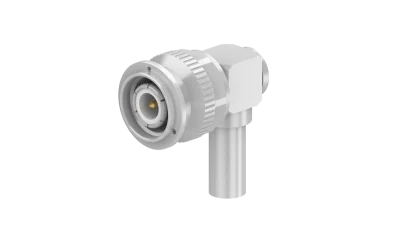

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22640492

16_TNC-50-3-13/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

23010115

16_TNC-50-3-112/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84012481

16_TNC-50-3-28/133_NE

Single packaging

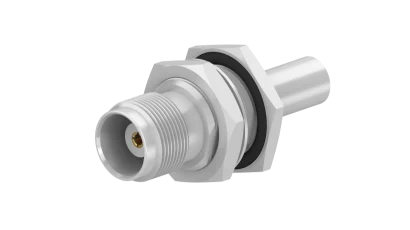

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23010150

24_TNC-50-3-23/133_NE

Single packaging

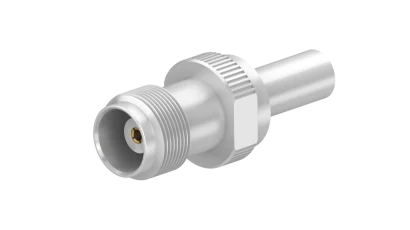

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

22640523

21_TNC-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84016544

21_TNC-50-3-31/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84018747

21_TNC-50-3-4/133_NH

Bulk packaging

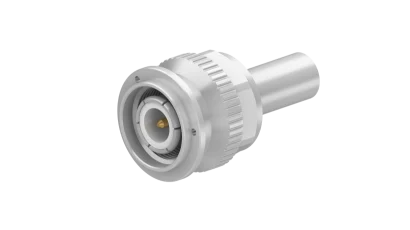

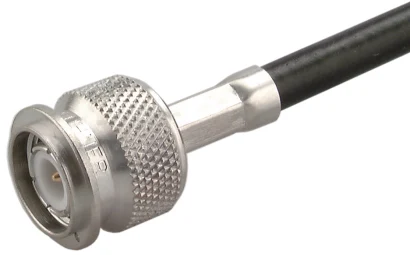

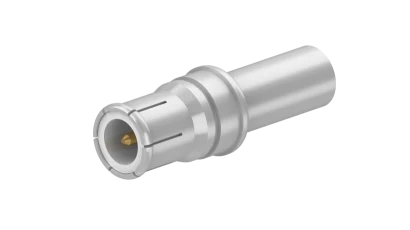

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22543475

11_TNC-50-3-6/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22640798

11_TNC-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22648593

11_TNC-50-3-31/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22658218

11_TNC-50-3-116/133_UH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22660229

11_TNC-50-3-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

23001714

11_TNC-50-3-116/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

23001715

11_TNC-50-3-116/133_NH

Bulk packaging

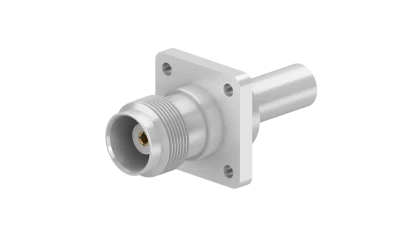

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

22643707

25_TNC-50-3-9/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

84016722

25_TNC-50-3-19/133_NE

Single packaging

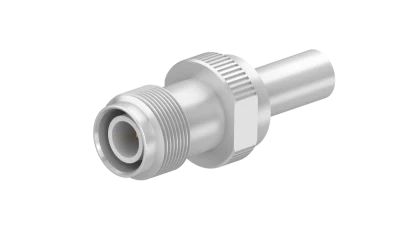

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable jack (female)

23003716

21_TNC-R50-3-14/133_NE

Single packaging

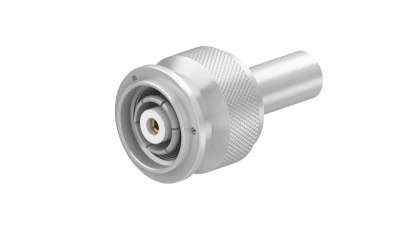

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

22658965

11_TNC-R50-3-42/133_NE

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542678

11_UHF-0-3-17/033_-E

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542680

11_UHF-0-3-19/033_-E

Single packaging

COAXIAL CONNECTOR, UHF, X Ohm, Right angle cable plug (male)

22542757

16_UHF-0-3-4/023_-E

Single packaging

COAXIAL CONNECTOR, UHF, X Ohm, Straight cable jack (female)

22542770

21_UHF-0-3-3/033_-E

Single packaging

Taper sleeve 4.85 - 5.5 mm

22544408

78_Z-0-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544409

78_Z-8-3-4

Missing product short name

Taper sleeve 4.85 - 5.5 mm

22544410

78_Z-7-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544411

78_Z-6-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544412

78_Z-5-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544413

78_Z-4-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544414

78_Z-3-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544415

78_Z-2-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544416

78_Z-1-3-4

Missing product short name

Taper sleeve 4.85 - 5.5 mm

22544508

78_Z-9-3-4

-

Product code	G_03262-01
Cable family	G: RF cables with PE dielectrics
Available as assembly only	No
Cable group	U7

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 1 GHz
Capacitance	101 pF/m
Velocity of signal propagation	66 %
Signal delay	5 ns/m
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 2.5 kVrms
Test voltage (50 Hz/1 min)	≤ 5 kVrms

Weight	approx. 39 g/m
Static bending radius	≥ 20 mm
Repeated bending radius	50 mm
Dynamic bending radius	< 100 mm

Operation temperature	-40 °C ... 85 °C
Installation temperature	-20 °C ... 60 °C
Flame propagation standard	IEC 60332-1
Fire characteristics	free of halogenes

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%

Related content

Products

50 Ohm, 1 GHz, 85°C, ø4.95 mm, LSFH jacket

Specifications

Related products

Suitable connectors

Cable terminators for flexible cables

23013153

83_CT-0-3-1/-23_-E

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540185

16_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540198

16_BNC-50-3-13/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22644365

16_BNC-50-3-5/133_UH

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84013233

16_BNC-50-3-25/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84057675

16_BNC-50-3-27/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540378

24_BNC-50-3-1/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540385

24_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84057964

24_BNC-50-3-37/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22540263

21_BNC-50-3-12/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22646504

21_BNC-50-3-26/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

84057699

21_BNC-50-3-27/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540045

11_BNC-50-3-1/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540052

11_BNC-50-3-4/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540054

11_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540077

11_BNC-50-3-25/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641268

11_BNC-50-3-4/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22644457

11_BNC-50-3-50/CER_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22658737

11_BNC-50-3-72/122_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057578

11_BNC-50-3-87/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057579

11_BNC-50-3-87/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

84057974

25_BNC-50-3-39/133_NE

COAXIAL CONNECTOR, C, 50 Ohm, Straight bulkhead cable jack (female)

22644448

24_C-50-3-2/133_NE

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541103

11_C-50-3-7/133_NE

COAXIAL CONNECTOR, H4, 50 Ohm, Straight bulkhead cable jack (female)

22541784
