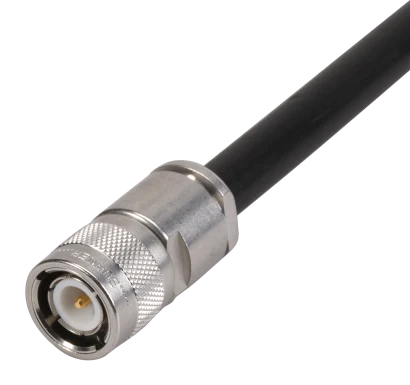

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

Product number 22541137

Identifier 11_C-50-7-6/133_NE

Variation Single packaging

General Information

Key features

Easy coupling and decoupling
Applicable in frequencies up to 11 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 12 weeks (ex works)

Distributor

FC LANE with lead time

MOUSER with lead time

DIGIKEY with lead time

MASTER ELECTR. with lead time

Product code	11_C-50-7-6/133_N
Interface type	C
Available as assembly only	No
Cable group	U33 U32 U29

Interface type	C
Gender	plug
Standard	IEC 60169-7_MIL-STD-348A/302

Centre contact	Brass / SUCOPRO / Gold Plating
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Coupling nut	Brass / SUCOPLATE (R) Plating
Gasket	VMQ (Silicone rubber)

Impedance	50 Ω
Interface frequency	11 GHz

Weight	0.0463 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	clamped

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	U33 - 7 mm / 50 Ohm U32 - 7 mm / 50 Ohm U29 - 7 mm / 50 Ohm
Suitable cables	RG_214_/U
Suitable cables	GX_07272_D

Related content

Products

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

Specifications

Availabilities

Related products

Suitable cables

50 Ohm, 6 GHz, 85°C, ø10.8 mm, LSFH jacket

22512085

G_07262_D

RG213, 50 Ohm, 1 GHz, 85°C, ø10.3 mm, PVC jacket

22510052

RG_213_/U

RG213 LSFH, 50 Ohm, 2 GHz, 105°C, ø10.3 mm, RADOX® jacket

22510708

GX_07272

RG214, 50 Ohm, 6 GHz, 85°C, ø10.8 mm, PVC jacket

22510057

RG_214_/U

RG214, 50 Ohm, 6 GHz, 85°C, ø10.8 mm, PVC jacket

22511566

RG_214_/U-60

RG214, 50 Ohm, 6 GHz, 85°C, ø10.8 mm, PVC jacket

22512156

RG_214_HIFLEX

RG214 LSFH, 50 Ohm, 6 GHz, 105°C, ø10.8 mm, RADOX® jacket

22511171

GX_07272_D

RG214 LSFH, 50 Ohm, 6 GHz, 105°C, ø10.8 mm, RADOX® jacket

22511988

GX_07272_D-04

RG214 LSFH type, 50 Ohm, 6 GHz, 85°C, ø10.8 mm, LSFH jacket

85087101

ENVIROFLEX_B214

RG214 thermally aged, 50Ohm, 6GHz, 85°C, ø10.8mm, PVC jacket

22511272

G_07232_D-08

RG393, 50 Ohm, 6 GHz, 200°C, ø9.9 mm, FEP jacket

22511430

RG_393_/U

RG393 LSFH, 50 Ohm, 6 GHz, 105°C, ø10.05 mm, RADOX® jacket

22512282

ENVIROFLEX_393
