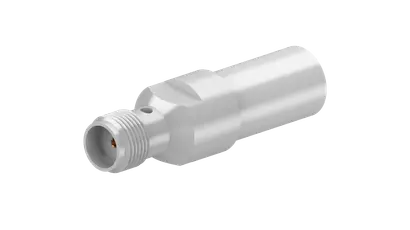

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

Product number 22644409

Identifier 21_SMA-50-4-52/133_NE

Variation Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0.1 GHz ... 2 GHz	27 dB	1.094
2 GHz ... 4 GHz	23.5 dB	1.143
4 GHz ... 6 GHz	22.4 dB	1.164

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

Product code	21_SMA-50-4-52/133_N
Interface type	SMA
Available as assembly only	No
Cable group	X9 X28 S16

Interface type	SMA
Gender	jack
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Crimp ferrule	Copper / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0058 kg
Mating cycles	500
Cable entry centre contact	plugged
Cable entry outer contact	crimped

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

Specifications

Related products

Suitable cables

Low-loss, 50 Ohm, 6 GHz, 85°C, ø5.5 mm, LSFH jacket

84023780

S_04162_B-01

Low-loss, 50 Ohm, 6 GHz, 85°C, ø5.7 mm, LSFH jacket

22512246

S_04262_D-03

Low-loss, 50 Ohm, 6 GHz, 85°C, ø5.7 mm, LSFH jacket

84034611

S_04262_D-09

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.15 mm, PE jacket

84151737

SPUMA_240

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH jacket

85021563

SPUMA_240-FR-01

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH jacket

85069656

SPUMA_240-FR-AM

Low-loss, 50 Ohm, 6 GHz, 105°C, ø5.7 mm, RADOX® jacket

22511926

SX_04272_D-02

Low-loss, 50 Ohm, 8 GHz, 105°C, ø5.5 mm, RADOX® jacket

84026748

SX_04172_B-60

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.3 mm, PUR jacket

22511855

S_04212_B

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.5 mm, LSFH jacket

84000918

S_04262_B-01

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.5 mm, PE jacket

22511622

S_04272_B

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	X9 - 4 mm / 50 Ohm X28 - 4 mm / 50 Ohm S16 - 4 mm / 50 Ohm
Suitable cables	S_04272_B
Additional cables	S_04262B-01
