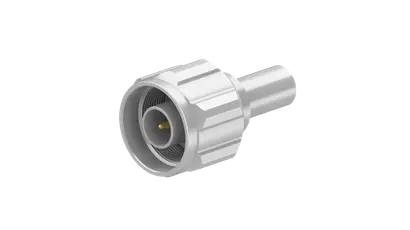

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

Product number 22660149

Identifier 11_N-50-4-9/133_NE

Variation Single packaging

General Information

Key features

Screwed coupling mechanism for sturdy and reliable connection
IP rating (interface, mated) IP67
Interface dimensions according IEC/MIL

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0.1 GHz ... 2 GHz	26 dB	1.106
2 GHz ... 4 GHz	20 dB	1.222
4 GHz ... 6 GHz	19.1 dB	1.25

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 4 weeks (ex works)

Distributor

FARNELL with lead time

RS COMP. 64 Piece

MOUSER 2 Piece

DIGIKEY with lead time

MASTER ELECTR. with lead time

Product code	11_N-50-4-9/133_N
Interface type	N
Available as assembly only	No
Cable group	X9 X28

Interface type	N
Gender	plug
Standard	IEC 61169-16_MIL-STD-348A/304_CECC 22210

Centre contact	Bronze / Gold Plating (Nickel underplated)
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Coupling nut	Brass / SUCOPLATE (R) Plating
Gasket	VMQ (Silicone rubber)
Crimp ferrule	Copper / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	11 GHz

Weight	0.0254 kg
Mating cycles	500
Cable entry centre contact	plugged
Cable entry outer contact	crimped

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

Specifications

Availabilities

Related products

Suitable cables

Low-loss, 50 Ohm, 6 GHz, 85°C, ø5.5 mm, LSFH jacket

84023780

S_04162_B-01

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.15 mm, PE jacket

84151737

SPUMA_240

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH jacket

85021563

SPUMA_240-FR-01

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH jacket

85069656

SPUMA_240-FR-AM

Low-loss, 50 Ohm, 8 GHz, 105°C, ø5.5 mm, RADOX® jacket

84026748

SX_04172_B-60

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.3 mm, PUR jacket

22511855

S_04212_B

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.5 mm, LSFH jacket

84000918

S_04262_B-01

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.5 mm, PE jacket

22511622

S_04272_B

Tools

Crimping die Cavity ID: 2 / C

22544758

76_Z-0-4-51

Trim tool for centre contact (W264)

22646290

74_Z-0-0-264

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c 6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	X9 - 4 mm / 50 Ohm X28 - 4 mm / 50 Ohm
Suitable cables	SPUMA_240
Suitable cables	SPUMA_240-FR-01
Additional cables	LMR-240
