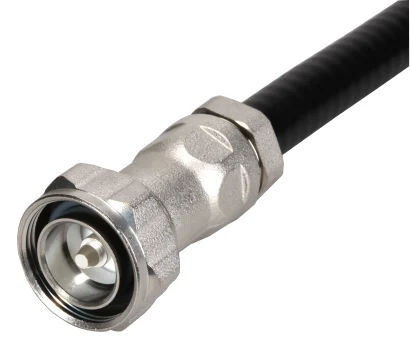

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)
Single packaging
Product code
11_716-50-12-50/033_-
Interface type
7/16
Available as assembly only
No
Cable group
M12
Field mountable connector series Quick-fit
For medium and high power connection
Applicable in frequencies up to 7.5 GHz
IEC Standardized
Product configuration
Interface type
7/16
Gender
plug
Standard
IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Material data
Centre contact
Bronze / Silver Plating
Outer conductor
Brass / SUCOPLATE (R) Plating
Body
Brass / SUCOPLATE (R) Plating
Insulator
PFA / PTFE
Coupling nut
Brass / SUCOPLATE (R) Plating
Gasket
NR (Natural Rubber)
Electrical data
Impedance
50 Ω
Interface frequency
7.5
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 2.7 GHz
30 dB
1.065
2.7 GHz ... 3.7 GHz
28 dB
1.08
Mechanical data
Weight
0.143
kg
Mating cycles
500
Cable entry centre contact
plugged
Cable entry outer contact
clamped
Environmental data
Operation temperature
-40 °C ... 85 °C
Ingress protection (IP Rating)
Mated / IP68 (24 h of water, 1 m)
Material compliance ROHS
Directive
RoHS 2011/65/EU and (EU) 2015/863
Rating
Compliant with exemption
Exemptions
6c
Suitable cables
Cable group
M12 - 12 mm / 50 Ohm
Suitable cables
SUCOFEED_1/2_LW
