Cables
Coaxial cables
Semi-Rigid
Product number 22810182
Identifier
Variation Base product short name
Choose a variant
×
×
Specification
Specifications
Construction
Component
Material
Detail
Diameter
Cable jacket print
Centre conductor
Copper, Silver plated
Wire
0.51 mm
Dielectric
PTFE (Polytetrafluoroethylene)
1.68 mm
Outer conductor
Copper, Tin plated
Tube, 100%
2.2 mm
Electrical data
Impedance
50 Ω +/-1.5Ω
Operating frequency
≤ 40
GHz
Capacitance
105
pF/m
Velocity of signal propagation
69.5
%
Signal delay
4.8
ns/m
Screening effectiveness
120dB
Insulation resistance
100000000
MΩ*m
Operating Voltage (at sea level)
≤ 1.5
kV
Test voltage (50 Hz/1 min)
≤ 5
kVrms
Mechanical data
Weight
approx. 23.8
g/m
Static bending radius
≥ 3.2
mm
Environmental data
Operation temperature
-55 °C ... 125 °C
Installation temperature
-20 °C ... 60 °C
Fire characteristics
contains halogene
Material compliance ROHS
Directive
RoHS 2011/65/EU and (EU) 2015/863
Rating
Compliant without exemption
Material compliance REACH
Regulation
REACH 1907/2006 Article 33 SVHC
Rating
Compliant
Related products
Suitable connectors
14_SMP-50-2-L2/111_N
80377974
14_SMP-50-2-L2/111_NE
Single packaging
14_SMP-50-2-S2/111_N
80377975
14_SMP-50-2-S2/111_NE
Single packaging
21_SMP-50-2-1/111_N
80377838
21_SMP-50-2-1/111_NE
-
26_SMP-50-2-2/111_N
80377839
26_SMP-50-2-2/111_NE
Single packaging
Cable terminators for Semi-rigid cables
23017092
83_CT-0-2-6/-11_NE
Single packaging
COAXIAL CONNECTOR, 1.0/2.3 , 50 Ohm, Straight cable jack (female)
22650062
21_1023-C50-2-6/111_NH
Bulk packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)
22645606
24_BMA-50-2-4/111_NE
Single packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)
22650754
24_BMA-50-2-9/119_NE
Single packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)
84097552
24_BMA-N50-2-20/11-_NE
Single packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)
22645600
14_BMA-50-2-2/111_NE
Single packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)
22646662
14_BMA-50-2-15/111_NE
Single packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)
85006671
14_BMA-50-2-33/133_NH
Bulk packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount
22645604
25_BMA-50-2-2/119_NE
Single packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount
22651407
25_BMA-50-2-2/119_NH
Bulk packaging
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount
84145709
25_BMA-N50-2-13/119_NE
Single packaging
COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)
22641886
24_BNC-50-2-20/133_NE
Single packaging
COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)
22641778
11_BNC-50-2-20/103_NE
Single packaging
COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount
22641906
25_BNC-50-2-20/133_NE
Single packaging
COAXIAL CONNECTOR, MBX, 50 Ohm, Straight bulkhead cable jack (female)
84148221
24_MBX-50-2-1/113_NH
Bulk packaging
COAXIAL CONNECTOR, MBX, 50 Ohm, Straight bulkhead cable jack (female)
85018152
24_MBX-50-2-11/133_NH
Bulk packaging
COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)
22658277
16_MCX-50-2-104/111_NH
Bulk packaging
COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)
23032067
16_MCX-50-2-104/111_NH-1
Bulk packaging
COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)
22543580
24_MCX-50-2-3/111_NE
Single packaging
COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)
23024699
11_MCX-50-2-19/111_NE
Single packaging
COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)
23032147
11_MCX-50-2-19/111_NH
Bulk packaging
COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight bulkhead cable jack (female)
23037876
24_MMBX-50-2-2/111_NH
Bulk packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)
22645957
16_MMCX-50-2-1/111_OE
Single packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)
22649044
16_MMCX-50-2-1/111_OH
Bulk packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)
84007944
16_MMCX-50-2-13/111_OH
Bulk packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)
84032569
16_MMCX-50-2-13/111_OE
Single packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight bulkhead cable jack (female)
22645954
24_MMCX-50-2-1/111_OE
Single packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)
22645290
21_MMCX-50-2-1/111_OE
Single packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)
22645297
11_MMCX-50-2-1/111_OE
Single packaging
COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)
22649039
11_MMCX-50-2-1/111_OH
Bulk packaging
COAXIAL CONNECTOR, MMPX, 50 Ohm, Right angle cable plug (male)
84004976
16_MMPX-50-2-1/111_NI
-
COAXIAL CONNECTOR, MMPX, 50 Ohm, Right angle cable plug (male)
84022227
16_MMPX-50-2-1/111_NE
Single packaging
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable jack (female)
84004906
21_MMPX-50-2-1/111_NI
-
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable jack (female)
84022226
21_MMPX-50-2-1/111_NE
Single packaging
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)
84004891
11_MMPX-50-2-1/111_NI
-
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)
84004970
11_MMPX-50-2-2/111_NI
-
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)
84022225
11_MMPX-50-2-1/111_NE
Single packaging
COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)
84022228
11_MMPX-50-2-2/111_NE
Single packaging
COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)
22544637
24_N-50-2-14/133_NE
Single packaging
COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)
22649012
24_N-50-2-14/133_NH
Bulk packaging
COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)
22642666
21_N-50-2-14/133_NE
Single packaging
COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)
22660315
11_N-50-2-15/113_UE
Single packaging
COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount
22641303
25_N-50-2-14/133_NE
Single packaging
COAXIAL CONNECTOR, PC 3.5, 50 Ohm, Straight cable plug (male)
84009440
11_PC35-50-2-4/199_UE
Single packaging
COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)
23017667
16_QMA-50-2-3/133_NH
Bulk packaging
COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)
23017742
24_QMA-50-2-1/111_NE
Single packaging
COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)
23017743
24_QMA-50-2-1/111_NH
Bulk packaging
23022716
Base product short name
COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)
85004255
24_QMA-50-2-10/111_NH
Bulk packaging
COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)
23017704
11_QMA-50-2-3/133_NE
Single packaging
COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)
23017705
11_QMA-50-2-3/133_NH
Bulk packaging
COAXIAL CONNECTOR, SK, 50 Ohm, Straight bulkhead cable jack (female)
85020614
24_SK-50-2-56/199_NE
Single packaging
COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable jack (female)
84019664
21_SK-50-2-58/199_NE
Single packaging
COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable plug (male)
84013230
11_SK-50-2-56/119_NE
Single packaging
COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable plug (male)
84013239
11_SK-50-2-57/119_NE
Single packaging
COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Right angle cable plug (male)
23018813
16_SMA-50-2-100/199_NH
Bulk packaging
COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Straight cable plug (male)
22648717
11_SMA-50-2-100/111_NE
Single packaging
COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Straight cable plug (male)
84010006
11_SMA-50-2-20/119_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
22641953
16_SMA-50-2-43/133_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
22644242
16_SMA-50-2-53/119_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
22646639
16_SMA-50-2-53/119_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
22652924
16_SMA-50-2-103/111_NH
-
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
84018309
16_SMA-50-2-103/111_NE
-
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
84117807
16_SMA-50-2-110/133_NP
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
84130706
16_SMA-50-2-110/133_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)
22544532
24_SMA-50-2-15/111_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)
22641381
24_SMA-50-2-41/133_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)
22645368
24_SMA-50-2-41/133_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)
22645490
24_SMA-50-2-15/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)
22648727
24_SMA-50-2-100/111_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)
84115700
24_SMA-50-2-36/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)
85011113
24_SMA-50-2-56/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)
22544549
21_SMA-50-2-15/111_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)
22652141
21_SMA-50-2-15/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
22544545
11_SMA-50-2-15/111_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
22642315
11_SMA-50-2-65/119_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
22645366
11_SMA-50-2-65/119_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
22645898
11_SMA-50-2-15/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
22649011
11_SMA-50-2-51/119_NH
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
84117816
11_SMA-50-2-110/133_NP
Bulk packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
84130715
11_SMA-50-2-110/133_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
85107887
11_SMA-50-2-15/111_UH
Missing product short name
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
85254519
11_SMA-50-2-102/111_UE
Missing product short name
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount
22544551
25_SMA-50-2-15/111_NE
Single packaging
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount
22641493
25_SMA-50-2-25/111_NE
Single packaging

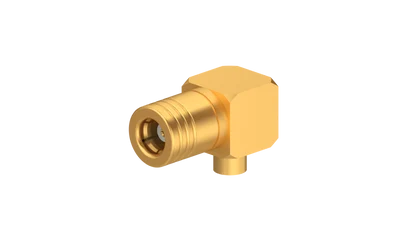

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)
22644079
16_SMB-50-2-23/111_NE
Single packaging
COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)
22640822
24_SMB-50-2-13/111_NE
Single packaging
COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)
84047710
24_SMB-50-2-13/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)
22543362
11_SMB-50-2-13/111_NE
Single packaging
COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)
22658765
11_SMB-50-2-13/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)
22644126
16_SMC-50-2-25/111_NE
Single packaging
COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)
22645426
16_SMC-50-2-26/HP_NH
Bulk packaging
COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)
23003713
16_SMC-50-2-25/111_NH
Bulk packaging
COAXIAL CONNECTOR, SMC, 50 Ohm, Straight cable plug (male)
22650675
11_SMC-50-2-13/111_NH
Bulk packaging
COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)
23001721
24_TNC-50-2-31/133_NE
Single packaging
23017266
Base product short name
COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)
23022624
24_TNC-50-2-40/19-_NE
Single packaging
COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)
22642519
11_TNC-50-2-20/103_NE
Single packaging
COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount
22642694
25_TNC-50-2-21/133_NE
Single packaging
23037130
Base product short name
85074902
Base product short name
Please enable JavaScript to continue using this application.
