Hand formable (RG403) 50Ohm, 6GHz, 165°C, ø2.5mm, FEP jacket

Product number 84016948

Identifier SUCOFORM_86-TC_FEP

Variation -

General Information

Key features

Hand-formable alternative to semi-rigid cables
Small bend radius allows for space saving routing and packaging
Performance comparable to semi-rigid cables
Non-magnetic
FEP jacket

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Silver plated	Wire	0.53 mm
Dielectric	PTFE (Polytetrafluoroethylene)		1.65 mm
Outer conductor	Copper, Tin plated	Tin soaked braid, 100%	2.1 mm
Jacket	FEP (Fluorinated ethylene propylene)		2.5 mm	HUBER+SUHNER SUCOFORM 86-TC FEP 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Hand formable (RG403) 50Ohm, 6GHz, 165°C, ø2.5mm, FEP jacket

Related products

Suitable connectors

14_SMP-50-2-L2/111_N

80377974

14_SMP-50-2-L2/111_NE

Single packaging

14_SMP-50-2-S2/111_N

80377975

14_SMP-50-2-S2/111_NE

Single packaging

21_SMP-50-2-1/111_N

80377838

21_SMP-50-2-1/111_NE

-

26_SMP-50-2-2/111_N

80377839

26_SMP-50-2-2/111_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

22645606

24_BMA-50-2-4/111_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

22650754

24_BMA-50-2-9/119_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

84097552

24_BMA-N50-2-20/11-_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22645600

14_BMA-50-2-2/111_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22646662

14_BMA-50-2-15/111_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

85006671

14_BMA-50-2-33/133_NH

Bulk packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22645604

25_BMA-50-2-2/119_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22651407

25_BMA-50-2-2/119_NH

Bulk packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

84145709

25_BMA-N50-2-13/119_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22641886

24_BNC-50-2-20/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641778

11_BNC-50-2-20/103_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

22641906

25_BNC-50-2-20/133_NE

Single packaging

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight bulkhead cable jack (female)

84148221

24_MBX-50-2-1/113_NH

Bulk packaging

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight bulkhead cable jack (female)

85018152

24_MBX-50-2-11/133_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

22658277

16_MCX-50-2-104/111_NH

Bulk packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

22543580

24_MCX-50-2-3/111_NE

Single packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23024699

11_MCX-50-2-19/111_NE

Single packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23032147

11_MCX-50-2-19/111_NH

Bulk packaging

COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight bulkhead cable jack (female)

23037876

24_MMBX-50-2-2/111_NH

Bulk packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22645957

16_MMCX-50-2-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22649044

16_MMCX-50-2-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

84007944

16_MMCX-50-2-13/111_OH

Bulk packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

84032569

16_MMCX-50-2-13/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight bulkhead cable jack (female)

22645954

24_MMCX-50-2-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable jack (female)

22645290

21_MMCX-50-2-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

22645297

11_MMCX-50-2-1/111_OE

Single packaging

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

22649039

11_MMCX-50-2-1/111_OH

Bulk packaging

COAXIAL CONNECTOR, MMPX, 50 Ohm, Right angle cable plug (male)

84004976

16_MMPX-50-2-1/111_NI

-

COAXIAL CONNECTOR, MMPX, 50 Ohm, Right angle cable plug (male)

84022227

16_MMPX-50-2-1/111_NE

Single packaging

COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable jack (female)

84004906

21_MMPX-50-2-1/111_NI

-

COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable jack (female)

84022226

21_MMPX-50-2-1/111_NE

Single packaging

COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)

84004891

11_MMPX-50-2-1/111_NI

-

COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)

84004970

11_MMPX-50-2-2/111_NI

-

COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)

84022225

11_MMPX-50-2-1/111_NE

Single packaging

COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)

84022228

11_MMPX-50-2-2/111_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22544637

24_N-50-2-14/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22649012

24_N-50-2-14/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22660315

11_N-50-2-15/113_UE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22641303

25_N-50-2-14/133_NE

Single packaging

COAXIAL CONNECTOR, NEX10, 50 Ohm, Straight bulkhead cable jack (female)

85095339

24_NEX10-50-2-1/033_-Y

Bulk packaging

COAXIAL CONNECTOR, PC 1.85, 50 Ohm, Edge mount PCB jack (female)

85002004

21_PC185-50-2-6/19-_NE

Single packaging

COAXIAL CONNECTOR, PC 1.85, 50 Ohm, Straight cable plug (male)

85001960

11_PC185-50-2-6/19-_NE

Single packaging

COAXIAL CONNECTOR, PC 3.5, 50 Ohm, Straight cable plug (male)

84009440

11_PC35-50-2-4/199_UE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017667

16_QMA-50-2-3/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84068219

16_QMA-W50-2-9/113_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84075867

16_QMA-W50-2-9/113_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017742

24_QMA-50-2-1/111_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017743

24_QMA-50-2-1/111_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

85004255

24_QMA-50-2-10/111_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017704

11_QMA-50-2-3/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017705

11_QMA-50-2-3/133_NH

Bulk packaging

COAXIAL CONNECTOR, SK, 50 Ohm, Straight bulkhead cable jack (female)

85020614

24_SK-50-2-56/199_NE

Single packaging

COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable jack (female)

84019664

21_SK-50-2-58/199_NE

Single packaging

COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable plug (male)

84013230

11_SK-50-2-56/119_NE

Single packaging

COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable plug (male)

84013239

11_SK-50-2-57/119_NE

Single packaging

COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Right angle cable plug (male)

23018813

16_SMA-50-2-100/199_NH

Bulk packaging

COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Straight cable plug (male)

22648717

11_SMA-50-2-100/111_NE

Single packaging

COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Straight cable plug (male)

84010006

11_SMA-50-2-20/119_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22641953

16_SMA-50-2-43/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22644242

16_SMA-50-2-53/119_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22646639

16_SMA-50-2-53/119_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22652924

16_SMA-50-2-103/111_NH

-

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84018309

16_SMA-50-2-103/111_NE

-

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117807

16_SMA-50-2-110/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130706

16_SMA-50-2-110/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22544532

24_SMA-50-2-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22641381

24_SMA-50-2-41/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22645368

24_SMA-50-2-41/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22645490

24_SMA-50-2-15/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22648727

24_SMA-50-2-100/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

84115700

24_SMA-50-2-36/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

85011113

24_SMA-50-2-56/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22544549

21_SMA-50-2-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22652141

21_SMA-50-2-15/111_NH

Bulk packaging

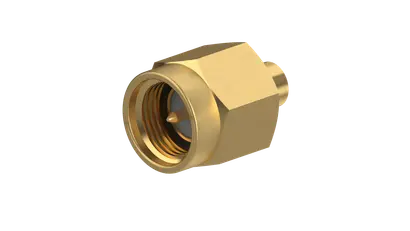

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22544545

11_SMA-50-2-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22642315

11_SMA-50-2-65/119_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22645366

11_SMA-50-2-65/119_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22645898

11_SMA-50-2-15/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84117816

11_SMA-50-2-110/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130715

11_SMA-50-2-110/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

85107887

11_SMA-50-2-15/111_UH

Missing product short name

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

85254519

11_SMA-50-2-102/111_UE

Missing product short name

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

22544551

25_SMA-50-2-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

22641493

25_SMA-50-2-25/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22644079

16_SMB-50-2-23/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

22640822

24_SMB-50-2-13/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

84047710

24_SMB-50-2-13/111_NH

Bulk packaging

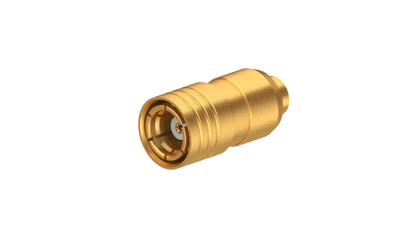

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22543362

11_SMB-50-2-13/111_NE

Single packaging

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22658765

11_SMB-50-2-13/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

22644126

16_SMC-50-2-25/111_NE

Single packaging

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

23003713

16_SMC-50-2-25/111_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23001721

24_TNC-50-2-31/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23022624

24_TNC-50-2-40/19-_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22642519

11_TNC-50-2-20/103_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

22642694

25_TNC-50-2-21/133_NE

Single packaging

Product code	SUCOFORM_86-TC_FEP
Cable family	Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables
Available as assembly only	No
Cable group	Y16

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 6 GHz
Capacitance	95 pF/m
Velocity of signal propagation	71 %
Signal delay	4.7 ns/m
Screening effectiveness	100 dB at frequency 0.1 GHz ... 6GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	199 Ω/km
Outer conductor resistance	39 Ω/km
Operating Voltage (at sea level)	≤ 1.5 kVrms
Test voltage (50 Hz/1 min)	≤ 3 kVrms

Weight	approx. 18 g/m
Static bending radius	≥ 6 mm
Repeated bending radius	20 mm (bendings, up to 50)

Operation temperature	-65 °C ... 165 °C
Installation temperature	-20 °C ... 60 °C
Flame propagation standard	IEC 60332-1 UL 1581 § 1080 (VW-1)
Fire characteristics	contains halogene

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%

Related content

Products

Hand formable (RG403) 50Ohm, 6GHz, 165°C, ø2.5mm, FEP jacket

Specifications

Related products

Suitable connectors

14_SMP-50-2-L2/111_N

80377974

14_SMP-50-2-L2/111_NE

14_SMP-50-2-S2/111_N

80377975

14_SMP-50-2-S2/111_NE

21_SMP-50-2-1/111_N

80377838

21_SMP-50-2-1/111_NE

26_SMP-50-2-2/111_N

80377839

26_SMP-50-2-2/111_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

22645606

24_BMA-50-2-4/111_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

22650754

24_BMA-50-2-9/119_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

84097552

24_BMA-N50-2-20/11-_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22645600

14_BMA-50-2-2/111_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22646662

14_BMA-50-2-15/111_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

85006671

14_BMA-50-2-33/133_NH

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22645604

25_BMA-50-2-2/119_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22651407

25_BMA-50-2-2/119_NH

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

84145709

25_BMA-N50-2-13/119_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22641886

24_BNC-50-2-20/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641778

11_BNC-50-2-20/103_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

22641906

25_BNC-50-2-20/133_NE

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight bulkhead cable jack (female)

84148221

24_MBX-50-2-1/113_NH

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight bulkhead cable jack (female)

85018152

24_MBX-50-2-11/133_NH

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

22658277

16_MCX-50-2-104/111_NH

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

22543580

24_MCX-50-2-3/111_NE

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23024699

11_MCX-50-2-19/111_NE

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23032147

11_MCX-50-2-19/111_NH

COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight bulkhead cable jack (female)

23037876

24_MMBX-50-2-2/111_NH

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22645957

16_MMCX-50-2-1/111_OE

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22649044
