As mobile networks move from 5G Advanced toward early 6G trials, macro cell sites are under increasing pressure. Higher radio counts, rising peak power demands, and growing fiber density must now be accommodated within the same physical footprint, while enabling faster deployment, simplified site management, and readiness for what comes next.
Traditional macro site cabling concepts are struggling to keep pace.
To meet these evolving requirements, HUBER+SUHNER introduces MASTERLINE Extreme Hybrid (MLEH) - a next generation hybrid cabling platform designed specifically for future ready macro cell site installations.
Macro sites are no longer static, one time installations. They must support continuous change—higher peak power radios, denser fiber infrastructures, and frequent upgrades—without increasing site complexity.
Operators, tower companies, and neutral hosts are therefore challenged to modernize sites while:
What is required is not another isolated solution, but a single hybrid cabling platform that can scale technically and operationally as network demands evolve.

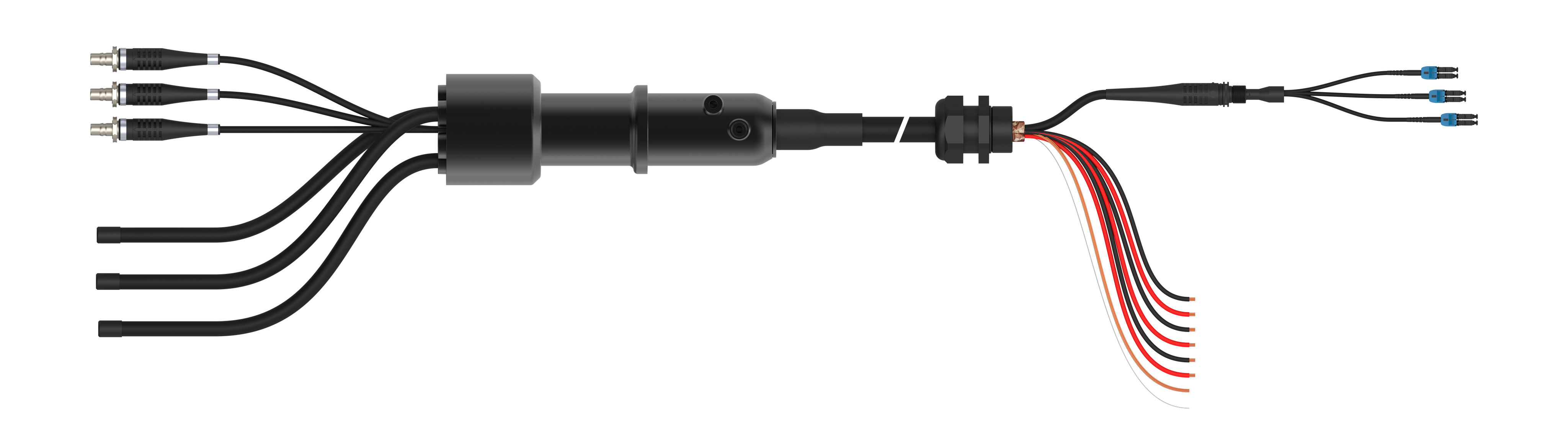

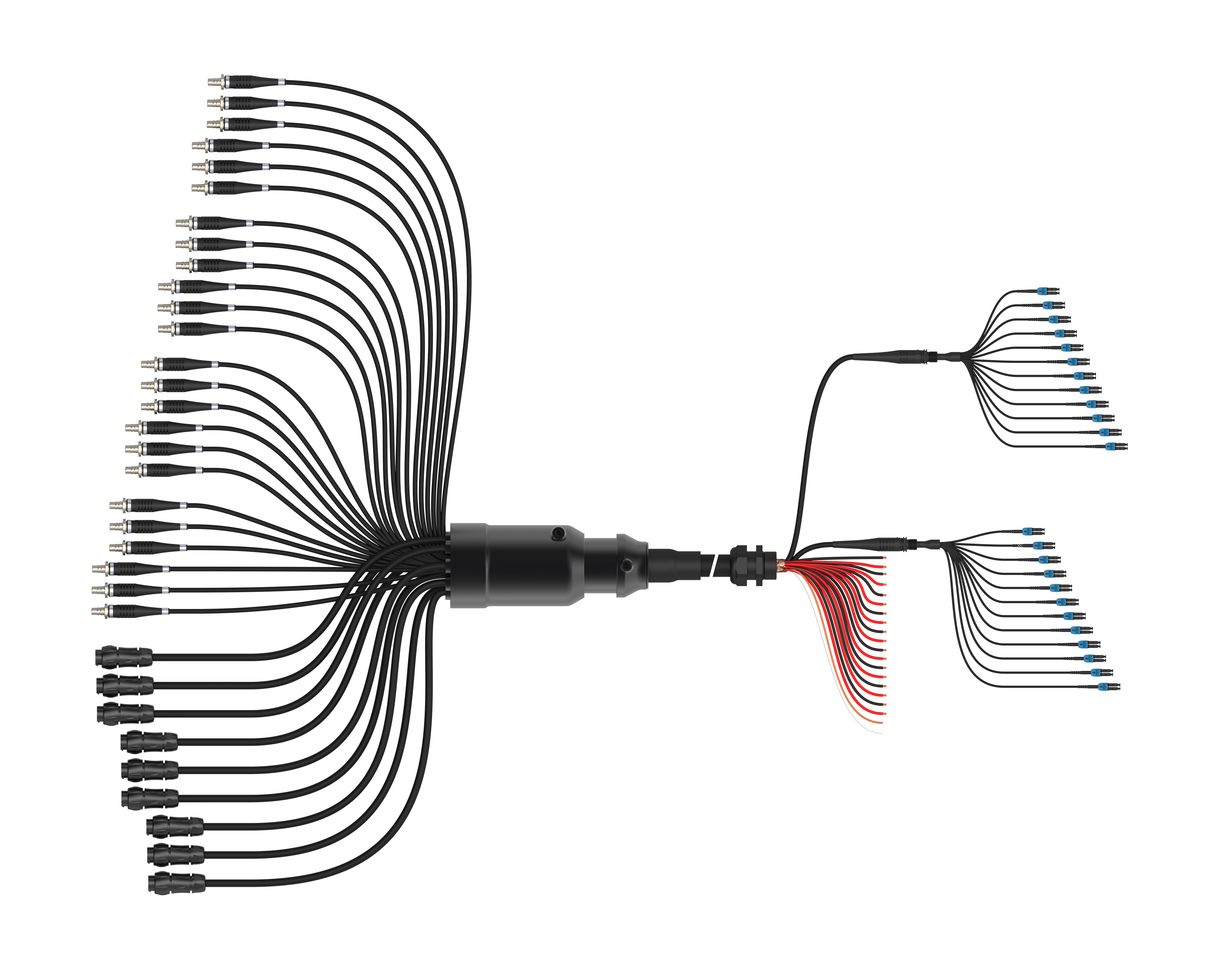

The MASTERLINE Extreme Hybrid (MLEH) is a highly modular, scalable hybrid fiber and power cabling system for macro cell RRH/AAU installations, designed to support:
MLEH is built on three core pillars: more fiber, more power and more flexibility.
Increasing radio counts drive higher fiber requirements. MLEH expands fiber density while keeping installation complexity under control.
5G Advanced and future 6G radios are driving higher energy demands, particularly on macro sites.
MLEH is engineered for these requirements with hybrid cable cross sections of up to 25 mm² (3 AWG), power peaks of up to 3300 W. Voltage rating is either -48 V DC to 74V DC, which is the typical telecom supplies, or 230 V AC (CE compliant).
The 230V AC version has significantly lower power loss and voltage drop, making the system suitable for long cable runs when installing high-power radios across global markets.
Unlike traditional box based solutions, MLEH is designed as a modular hybrid cable platform that adapts to diverse deployment requirements.
This flexibility enables faster project execution, simpler global deployment, and long term adaptability as radio strategies change.
Sustainability is a core design requirement for modern macro sites.
MLEH integrates a power divider architecture that minimizes the current derating required by the US National Electrical Code, enabling:
As a result, MLEH combines future readiness with resource efficiency.
MLEH is optimized for a wide range of macro deployments, including:
The platform supports ODC connectors engineered for extreme conditions, ensuring reliable connectivity from BBU to RRH across diverse installation scenarios.
Developed ahead of mass 6G deployment, MLEH enables operators to prepare sites early, reduce future retrofit costs, and accelerate next generation network upgrades.
The MLEH portfolio is supported by:
With increased fiber density, higher power capability, enhanced flexibility, and built in sustainability, MASTERLINE Extreme Hybrid (MLEH) enables network operators to deploy efficiently today while preparing confidently for tomorrow.

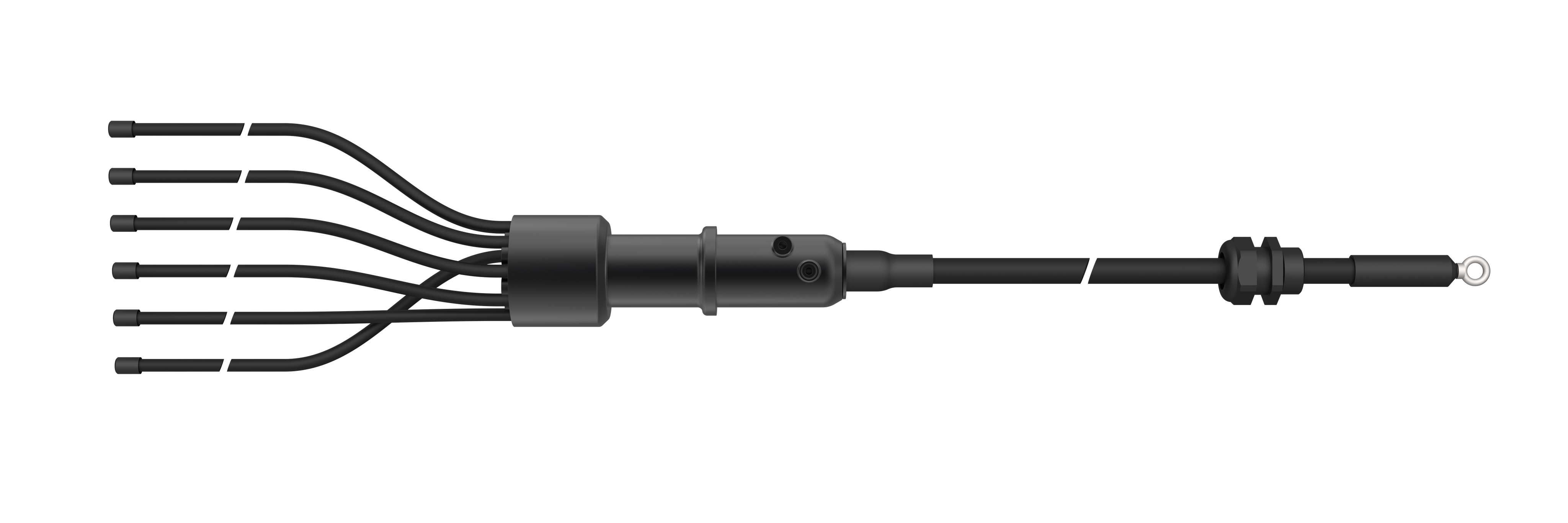

MASTERLINE Extreme Hybrid is available as power only configuration, so called MASTERLINE Extreme Power.
For existing installations that already have enough fiber optic cables installed, but too few copper cables or too small copper cross-sections, it makes more sense to install a MASTERLINE Extreme Power without fiber optic cables.
